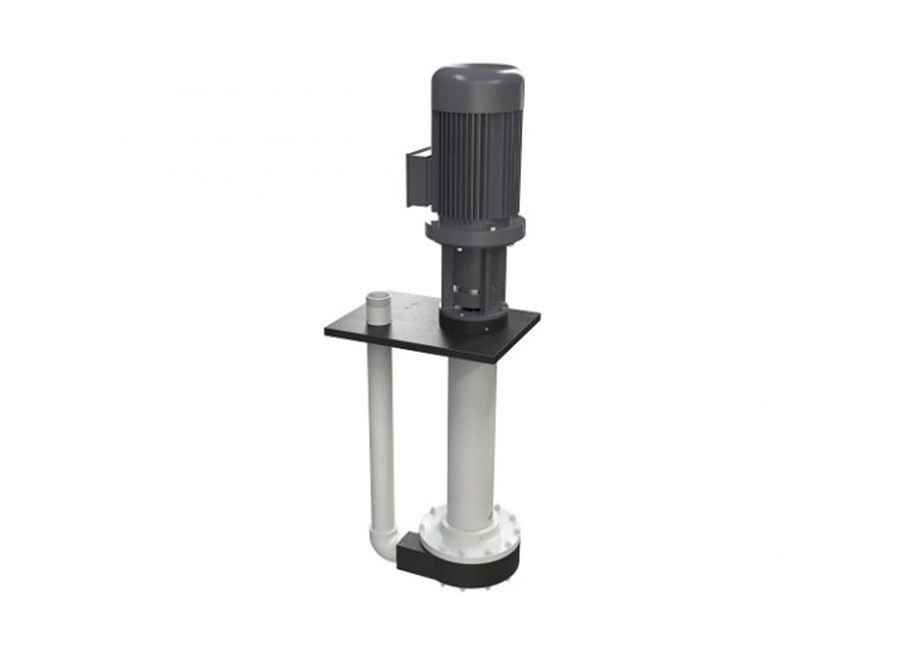

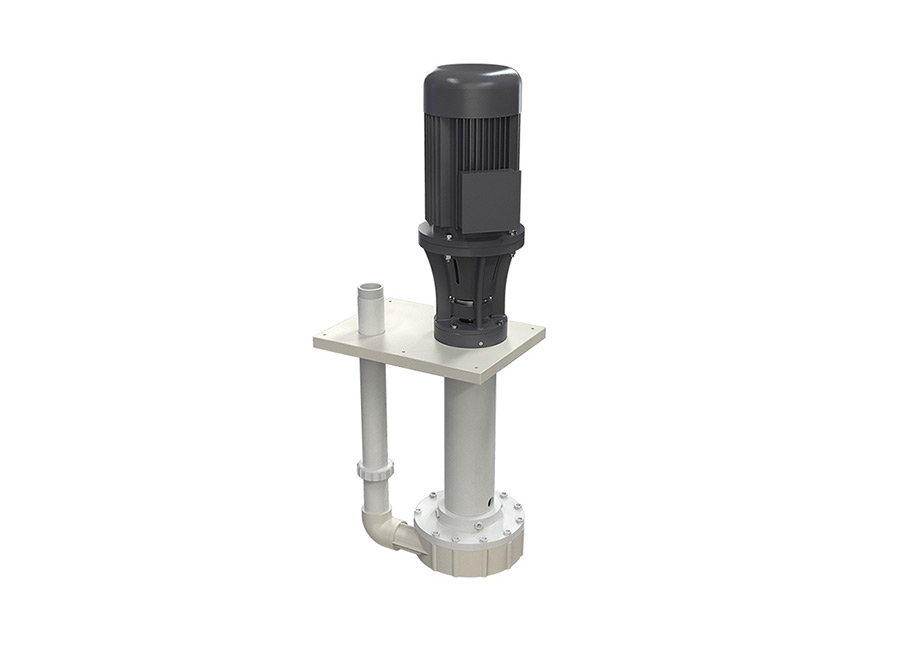

Electric centrifugal pumps
IM 200
- Max flow rate: 170 m3/h
- Suction connections: G 3″1/2 f o DN 90
- Delivery connections: G 3″ m o DN 80
WATER TREATMENT INDUSTRY
CHEMICAL INDUSTRY
GALVANIC AND ELECTRONIC INDUSTRY
DATA
Performance
* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials.
** Attention: average values of the different materials configurations for ball and ball seat.
DATA
Technical Specifications
Technical Specifications
| Suction connections | G 3″1/2 f o DN 90 available on request |
| Delivery connections | G 3″ m o DN 80 available on request |
| Max flow rate * | 170 m3/h |
| Max head * | 41 m |
| Viscosity | up to 500 cps |
| Standard open impeller | Ø 175 mm H 18,4 mm (special versions are available on request for the fluid pumped) |
| Passing solids | Ø max 15 mm |
Available column lenght
| Available column lenght (mm) |
| 800 |
| 1000 |
| 1250 |
Operating temperature
| Version | Min | Max |
| PP | 0° C | 70° C |
| PVDF | -10° C | 100° C |
PP PVDF
Standard electric motor
- Kw 18,5 – HP 25
- Box B5
- RPM 2900
- Aluminium / cast iron motor (the motor weight may vary, contact the sales office)
- THREEPHASE 400/690 V · 50/60 Hz · 2 poli · Efficiency IE3 · Protection rate IP55 · Ambient temperature -30°C + 45°C
Electric motor available on request
– ATEX
– EPDM
– VITON®
- Protective cover in polyurethane foam contained in a wooden cage
The dimensions and weights vary according to the length of the pump
- FLANGE KIT (DIN standard – ANSI available on request)
– KITFLANGIM180P (PP pump)
– KITFLANGIM180F (PVDF pump) - Pump protection filter* in PP or in PVDF
* The filter is sold separately
