Electric centrifugal pumps

IM 95

  • Max flow rate: 13 m3/h
  • Suction connections: G 2″ m or DN 50 available on request
  • Delivery connections: G 1″1/2 m or DN 40 available on request
APPLICATIONS

Application sectors

Industria Orafa
GOLD PROCESSING INDUSTRY
DEPURAZIONE ACQUA E FANGHI
WATER TREATMENT INDUSTRY
INDUSTRIA CHIMICA
CHEMICAL INDUSTRY
INDUSTRIA GALVANICA E ELETTRONICA
GALVANIC AND ELECTRONIC INDUSTRY
DATA

Performance

Curva-Prestazioni-DM06

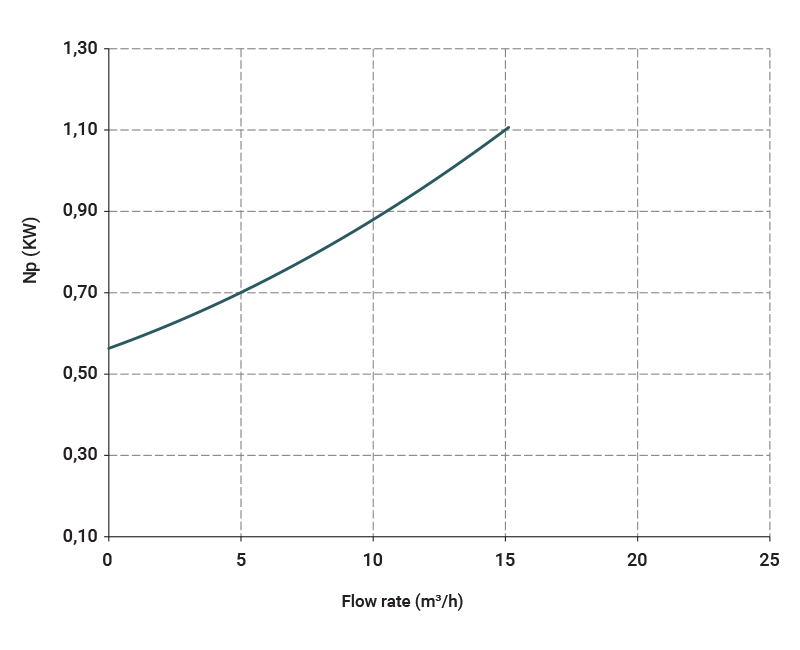

Curva-Potenza-DM06
Curva-NPSH-DM06

* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials.

** Attention: average values of the different materials configurations for ball and ball seat.

DATA

Technical Specifications

Technical Specifications
Suction connections G 2″ m or DN 50 available on request
Delivery connections G 1″ 1/2 m or DN 40 available on request
Max flow rate * 13 m3/h
Max head * 12 m
Viscosity up to 500 cps
Standard open impeller Ø 100 mm H 7 mm (special versions are available on request for the fluid pumped)
Passing solids Ø max 6 mm
Available column lenght
Available column lenght (mm) PP pump weight * PVDF pump weight *
500 15 kg 16 kg
800 19 kg 20 kg
1000 22 kg 23 kg
1250 24 kg 25 kg
1400 **

* Weights refer to the pump without motor
** Special version

Operating temperature
Version Min Max
PP  3° C 65° C
PVDF 3° C 95° C
Available in the following materials

PP PVDF

Standard electric motor
  • Kw 0,75 – HP 1
  • Box B5
  • RPM 2900
  • Aluminium / cast iron motor (the motor weight may vary, contact the sales office)
  • THREEPHASE 230/400 V · 50/60 Hz · 2 pole · Efficiency class IE3 · Protection rating IP55 · Ambient temperature -30°C + 45°C
Available electric motors

– SINGLEPHASE
– ATEX

Seal o-ring materials

– EPDM
– VITON®

Customisable fixing plate only at the design stage.
Package
  • Protective cover in polyurethane foam contained in a wooden cage

The dimensions and weights vary according to the length of the pump

Accessories
  • FLANGE KIT (DIN standard – ANSI available on request)
    – KITFLANGIM095P (PP pump)
    – KITFLANGIM095F (PVDF pump)
  • Pump protection filter* in PP or in PVDF

* The filter is sold separately
