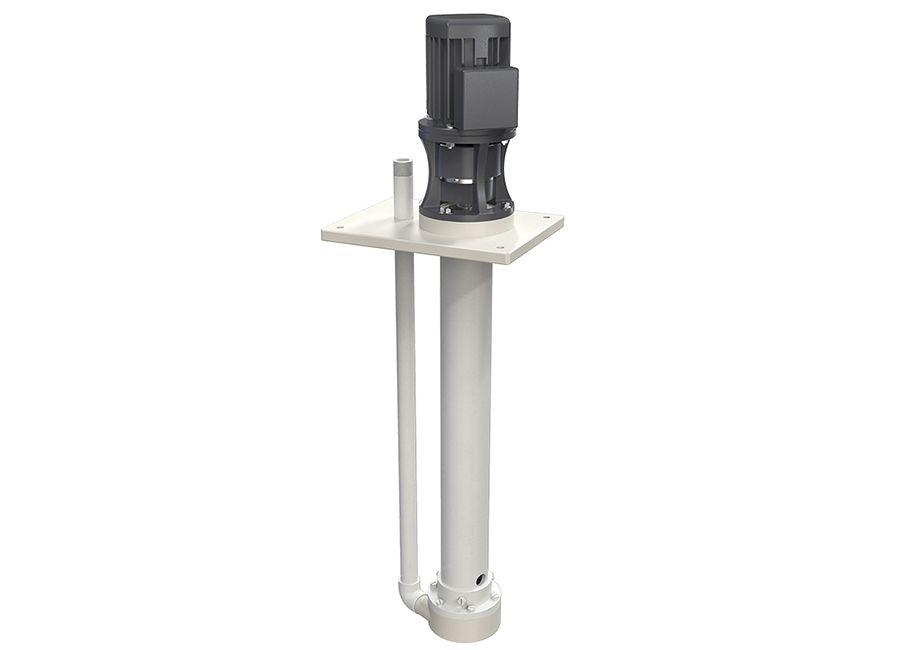

IM_80_PP

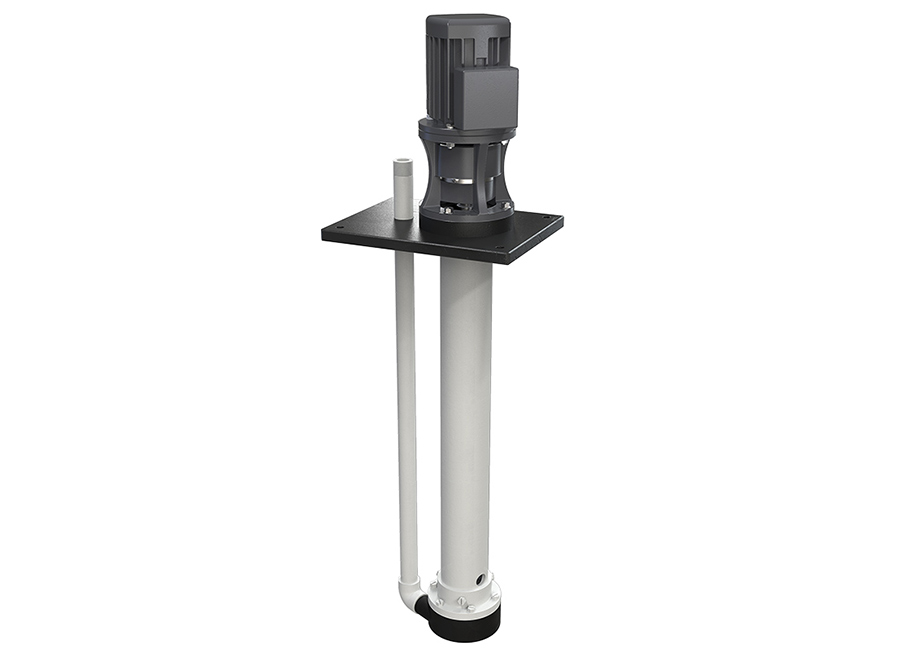

IM_80_PVDF
Electric centrifugal pumps

IM 80

  • Max flow rate: 6 m3/h
  • Suction connections: G 1″1/2 f o DN 40
  • Delivery connections: G 1″ m o DN 2
APPLICATIONS

Application sectors

DEPURAZIONE ACQUA E FANGHI
WATER AND SLUDGE TREATMENT
INDUSTRIA CHIMICA
CHEMICAL INDUSTRY
INDUSTRIA GALVANICA E ELETTRONICA
GALVANIC AND ELECTRONIC INDUSTRY
DATA

Performance

Curva-Prestazioni-IM80
Curva-Potenza-IM80
Curva-Rendimento-IM80

* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials.

** Attention: average values of the different materials configurations for ball and ball seat.

DATA

Technical Specifications

Technical Specifications
Suction connections G 1″1/2 f o DN 40
Delivery connections G 1″ m o DN 25
Max flow rate * 6 m3/h
Max head * 7,5 m
Viscosity up to 500 cps
Standard open impeller Ø 12 mm H 9 mm (special versions are available on request for the fluid pumped)
Passing solids Ø max 7 mm
Available column length
Available column length (mm) PP pump weight * PVDF pump weight *
250 6,5 kg 7 kg
500 7,5 kg 8 kg
800 10,5 kg 11 kg
1000**

* The weights refer to the pump without the motor
** Special version

Operating temperature
Version Min Max
PP  0° C 70° C
PVDF -10° C 100° C
Available in the following materials

PP PVDF

Standard electric motor
  • Kw 0,37 – HP 0,5
  • Box B5
  • RPM 2900
  • Aluminium / cast iron motor (the motor weight may vary, contact the sales office)
  • THREEPHASE 230/400 V · 50/60 Hz · 2 pole · Efficiency class IE1 · Protection rating IP55 · Ambient temperature -30°C + 45°C
Electric motors avilable on request

– SINGLEPHASE
– ATEX

Seal o-ring materials

– EPDM
– VITON®

Package
  • Protective cover in polyurethane foam contained in a wooden cage

The dimensions and weights vary according to the length of the pump

Customisable fixing plate only at the design stage
Accessories
  • FLANGE KIT (DIN standard – ANSI available on request)
    – KITFLANGIM080P (PP pump)
    – KITFLANGIM080F (PVDF pump)
  • Pump protection filter* in PP or in PVDF

* The filter is sold separately
