Air-operated double diaphragm pumps

Boxer

Air-operated double diaphragm volumetric pumps, ATEX – IECEx certified, constructed in polypropylene or PVDF in the plastic version or in aluminium or AISI 316 L for the metal versions. BOXER pumps are ideal for pumping liquids with high apparent viscosity, even if containing suspended solids. The vast range of materials available for the parts in contact with the fluid, such as pump casings and manifolds, diaphragms, balls, ball seats and o-rings, makes them compatible with any type of fluid present on the market. They can be used in numerous applications such as the following industries: chemical, graphic, paint, galvanic, ceramic, naval, textile, leather, mechanical, oil and many more.

Boxer251_900x950
Applications

Application sectors

Biodiesel
PRODUCTION AND STORAGE OF BIODIESEL
INDUSTRIA CERAMICA, PIETRE, MARMI, VETRO E MINERARIA
CERAMIC, STONE, MARBLE, GLASS AND MINING INDUSTRY
INDUSTRIA CHIMICA
CHEMICAL INDUSTRY
INDUSTRIA GRAFICA
GRAPHIC INDUSTRY
PACKAGING, COLLA, CARTA E CARTIERE
PACKING, GLUE, PAPER AND PAPER MILL
INDUSTRIA GALVANICA E ELETTRONICA
GALVANIC AND ELECTRONIC INDUSTRY
Automotive
AUTOMOTIVE
Industria Meccanica
MECHANICAL AND MATALLURGIC INDUSTRY
Industria delle Vernici
PAINT INDUSTRY
Oil & Gas
OIL & GAS
Industria Orafa
GOLD PROCESSING INDUSTRY
DEPURAZIONE ACQUA E FANGHI
WATER TREATMENT INDUSTRY
Industria Tessile e conciaria
TEXTILE AND LEATHER INDUSTRY
Models

The Boxer models

BOXER-7_PP_01-04

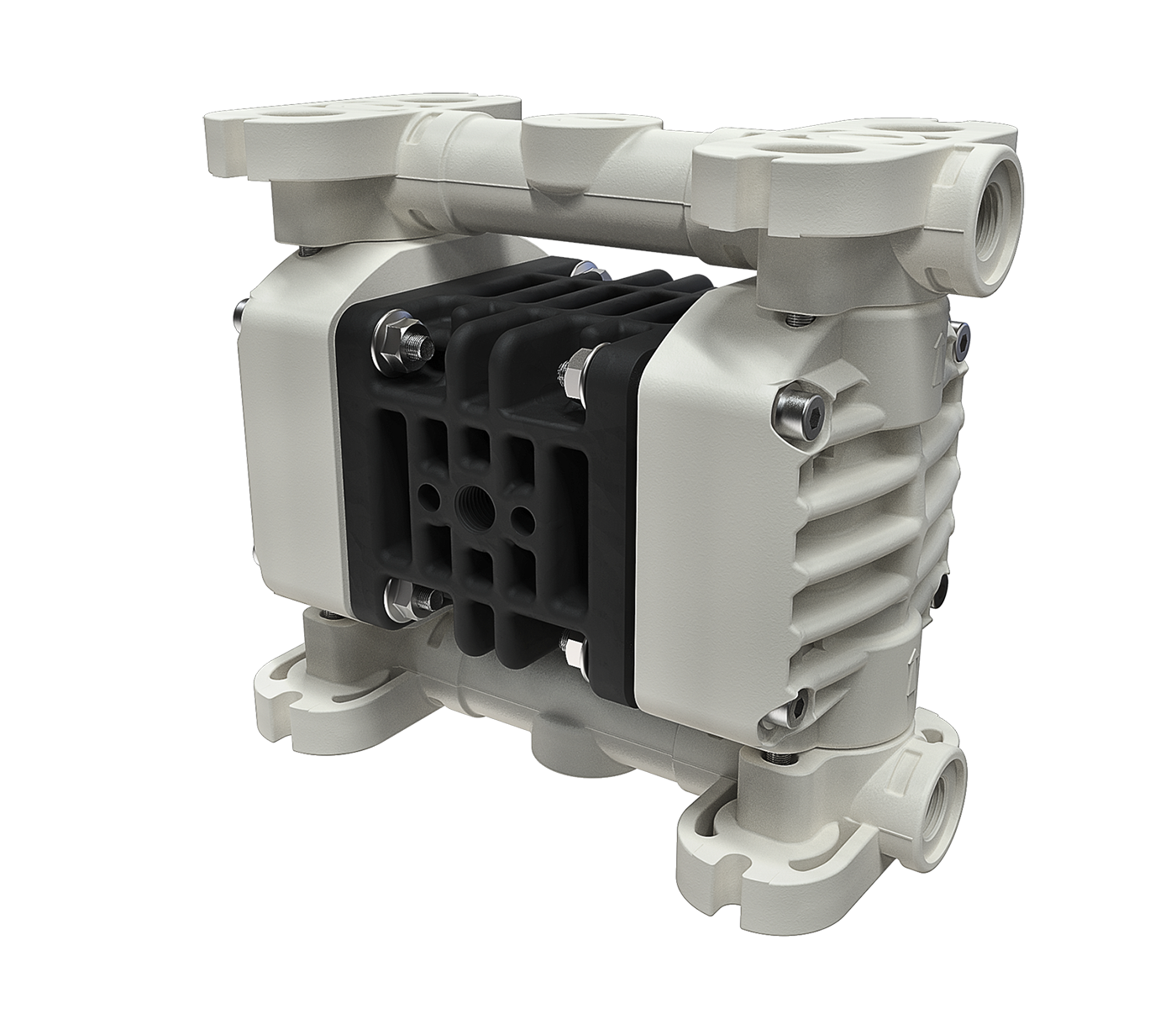

BOXER 7

MAX FLOW RATE 9 L/MIN
CONNECTIONS G 1/4“F

ENTER
BOXER-15_PP_2021

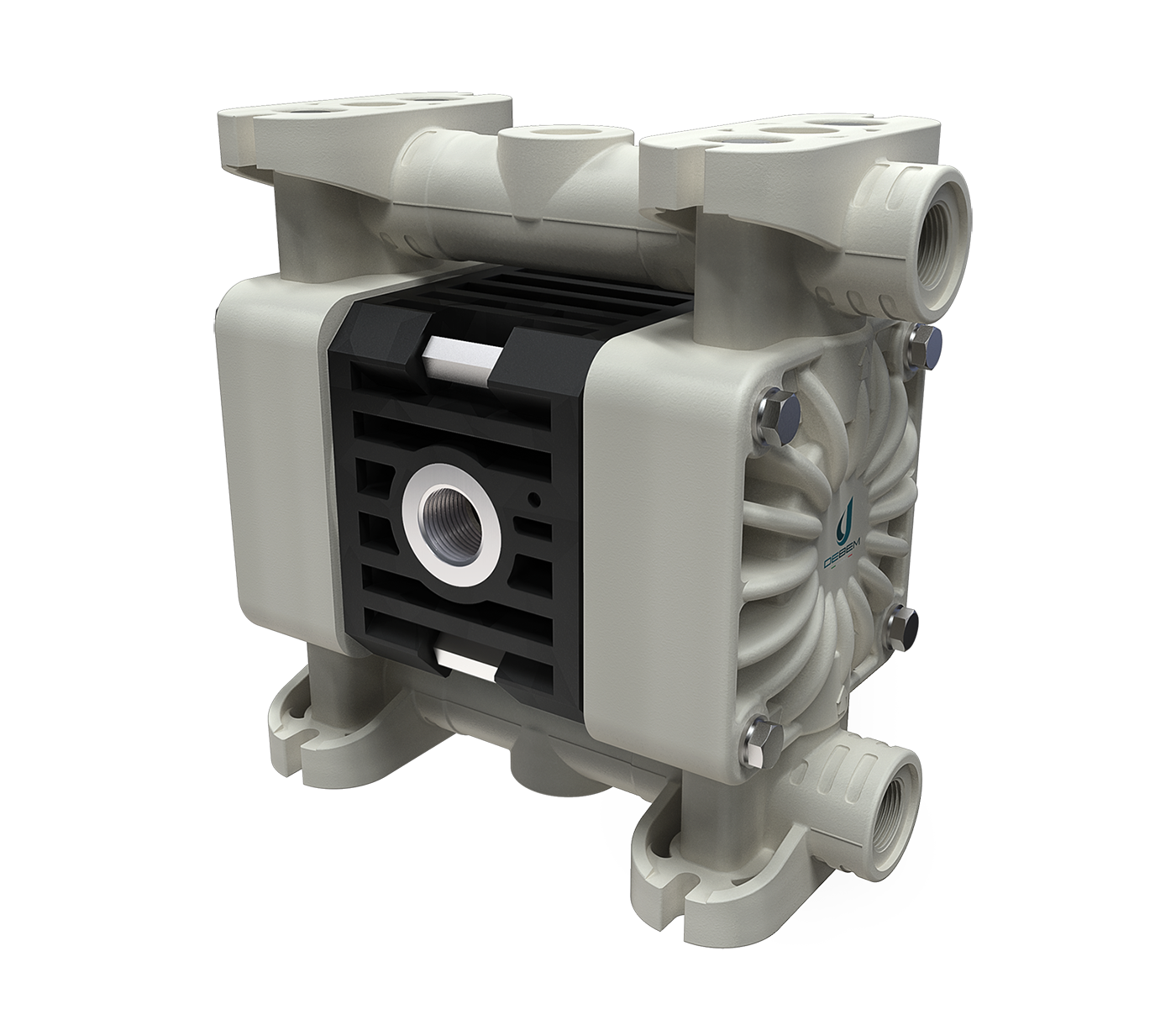

BOXER 15

MAX FLOW RATE 17 L/MIN
CONNECTIONS G 3/8“F

ENTER
013---MICROBOXER_PP

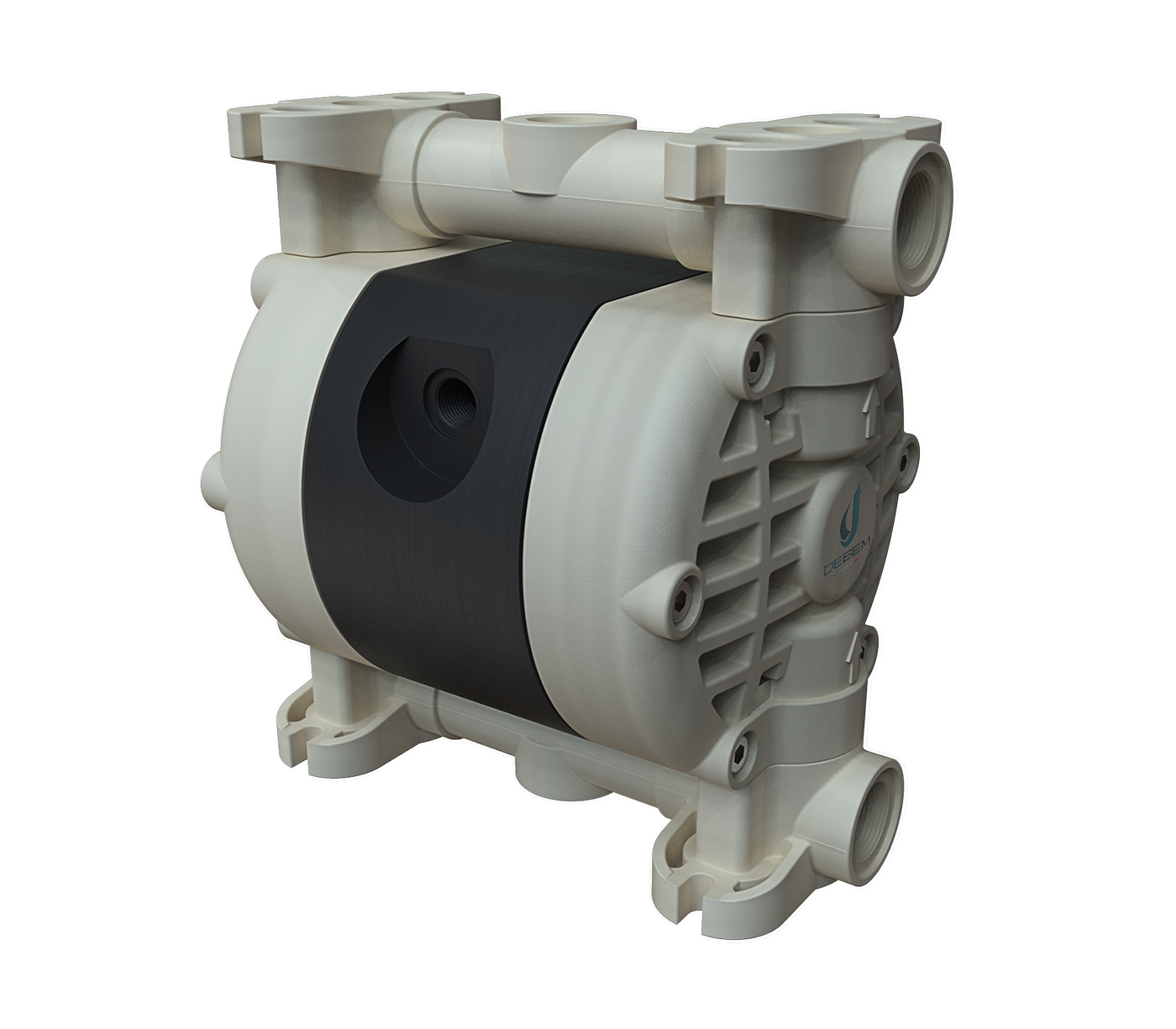

MICROBOXER

MAX FLOW RATE 35 L/MIN
CONNECTIONS G 1/2“F

ENTER
021---BOXER-50_PP

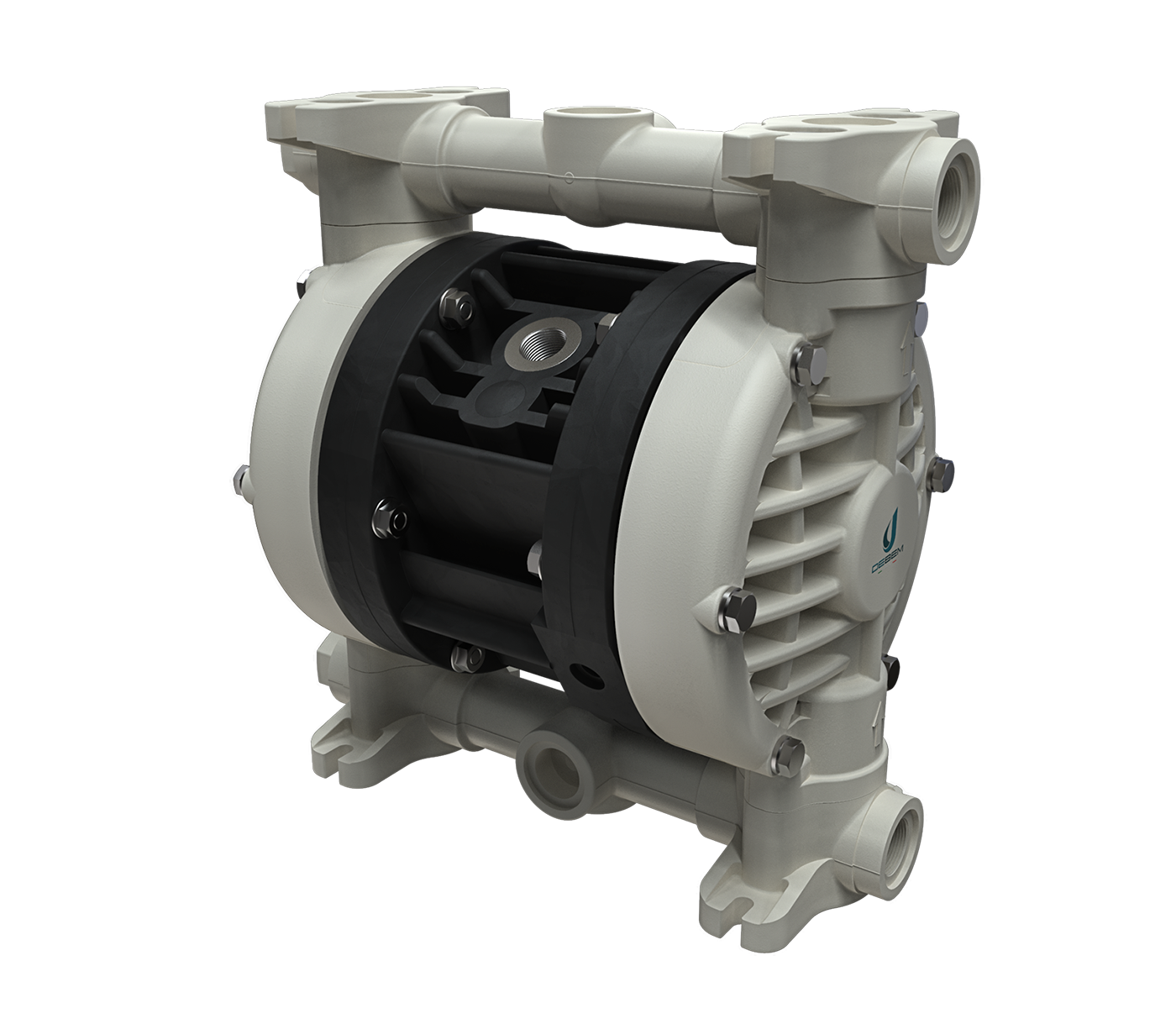

BOXER 50

MAX FLOW RATE 60 L/MIN
CONNECTIONS G 1/2“F

ENTER
MINIBOXER_AISI

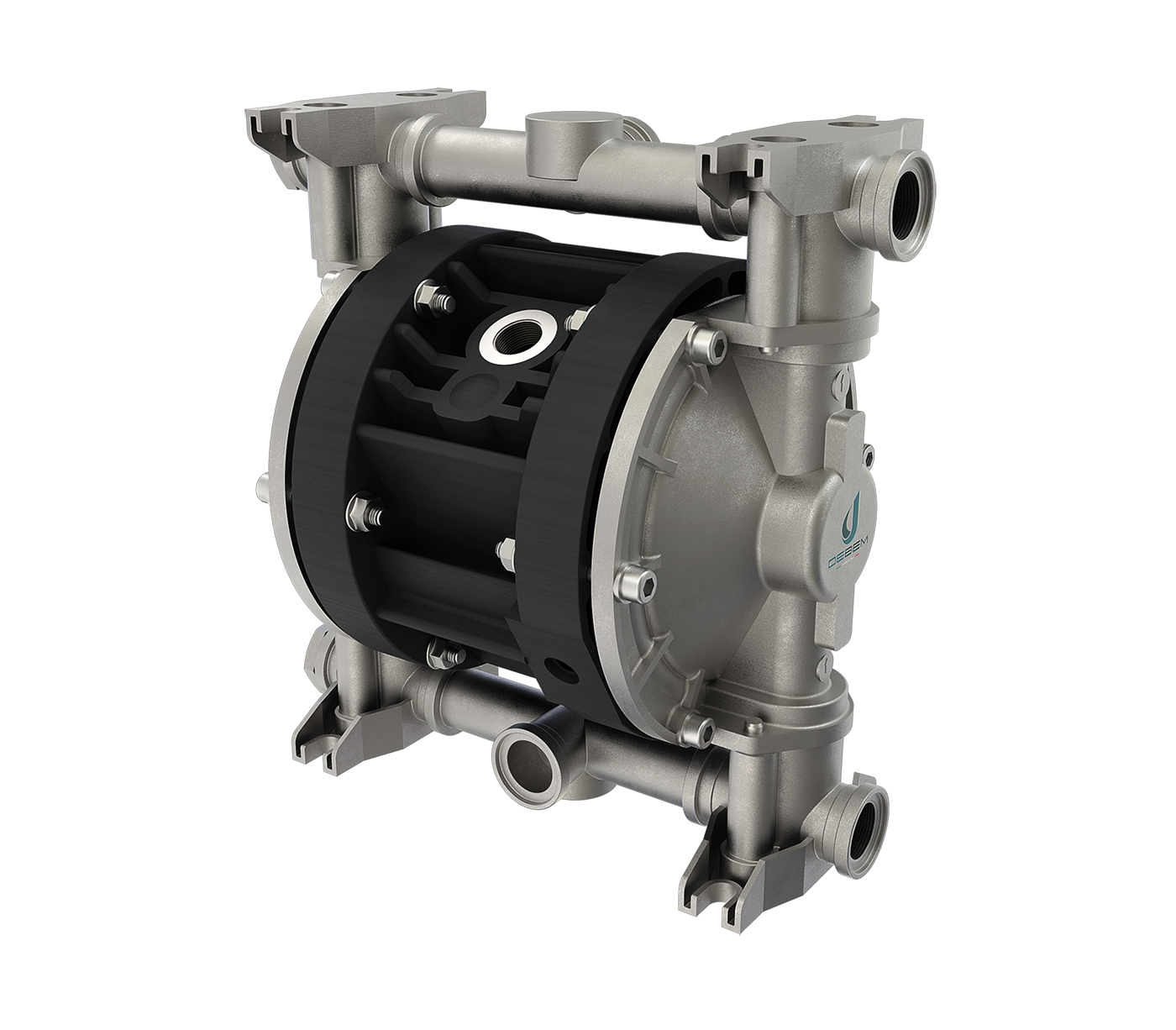

MINIBOXER

MAX FLOW RATE 60 L/MIN
CONNECTIONS G 1/2“F

ENTER
025---BOXER-81_PP

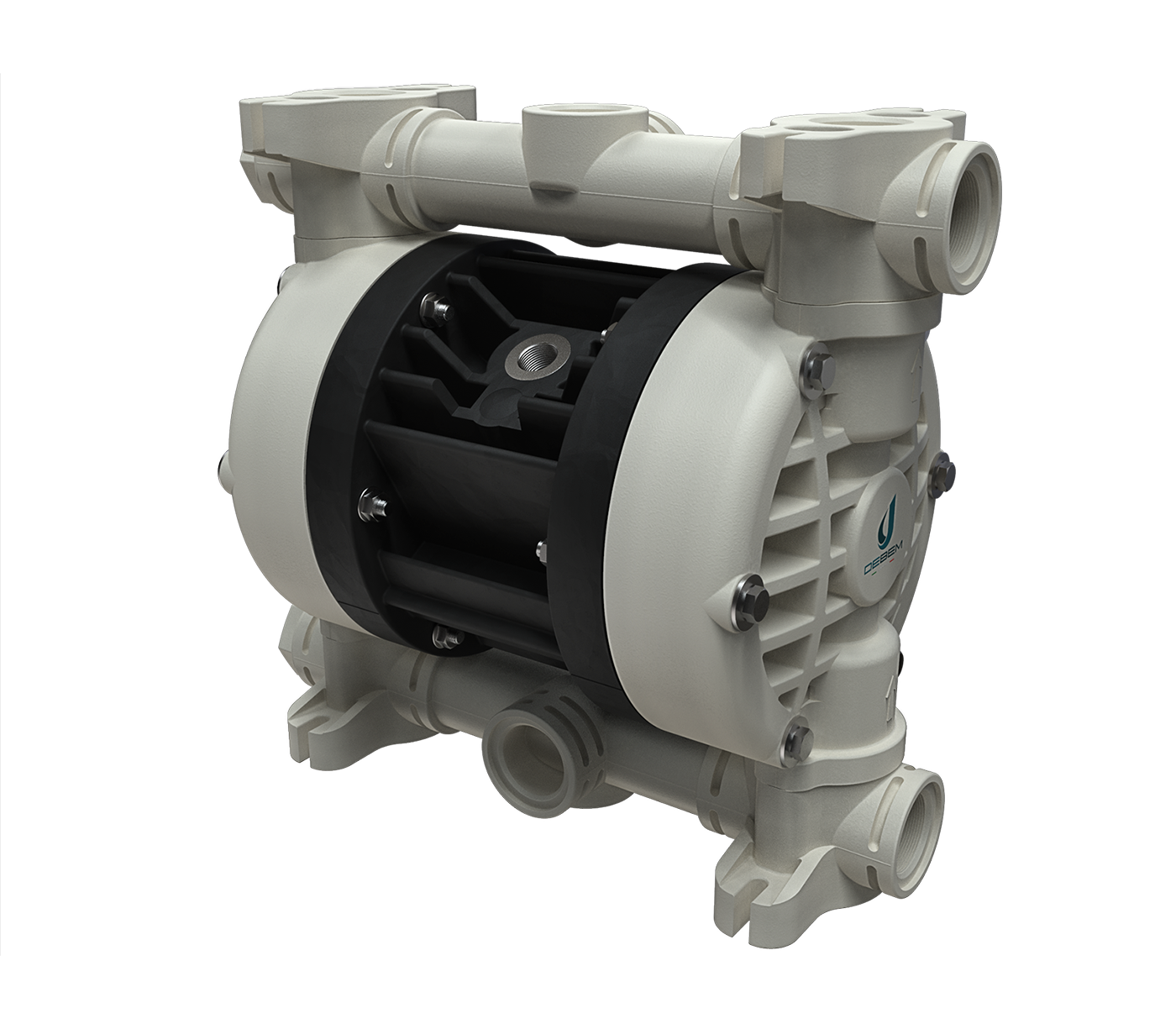

BOXER 81

MAX FLOW RATE 110 L/MIN
CONNECTIONS G 1“F

ENTER
028---BOXER-90-ALU

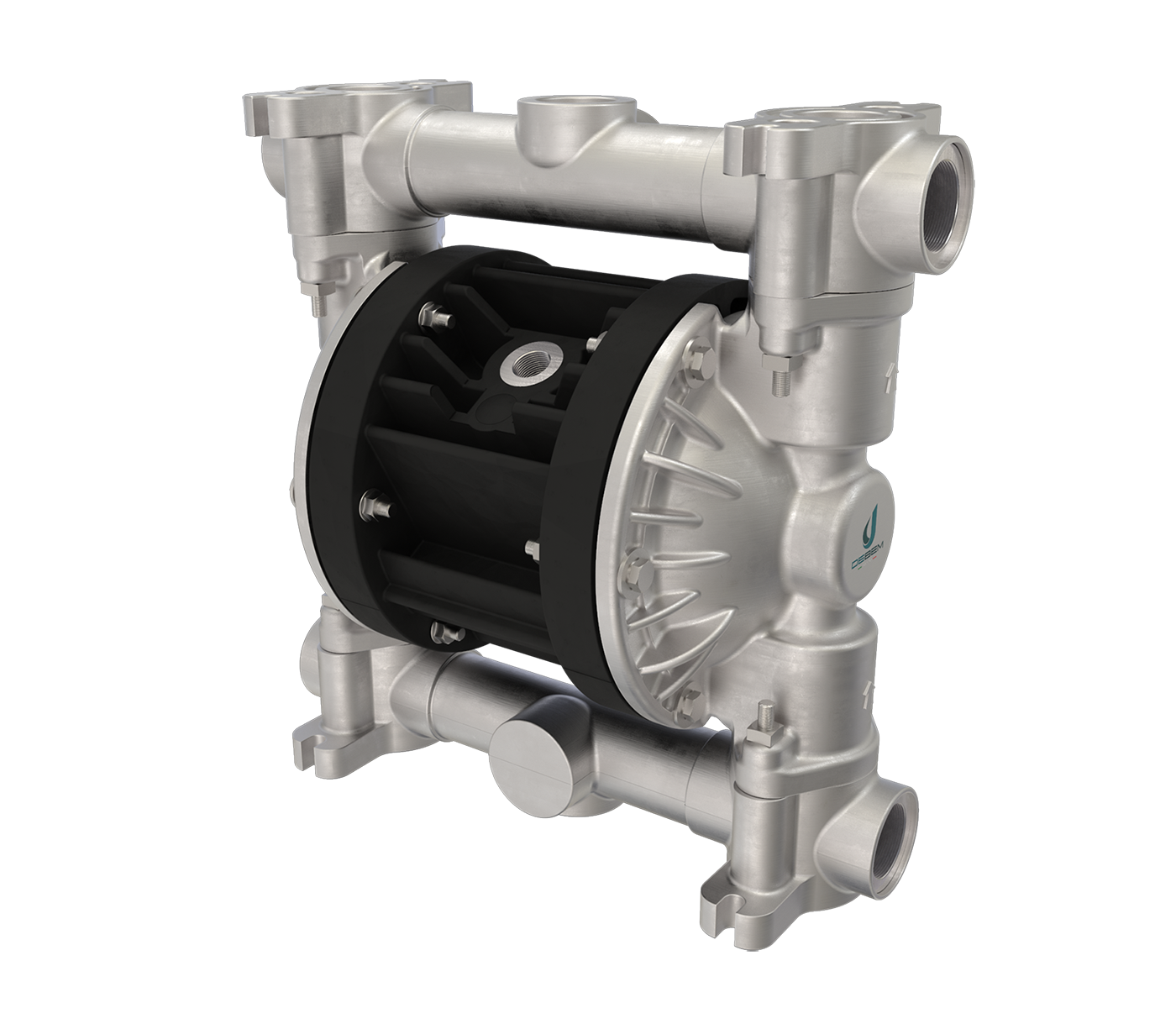

BOXER 90

MAX FLOW RATE 110 L/MIN
CONNECTIONS G 1“F

ENTER
FPC100_PTFE

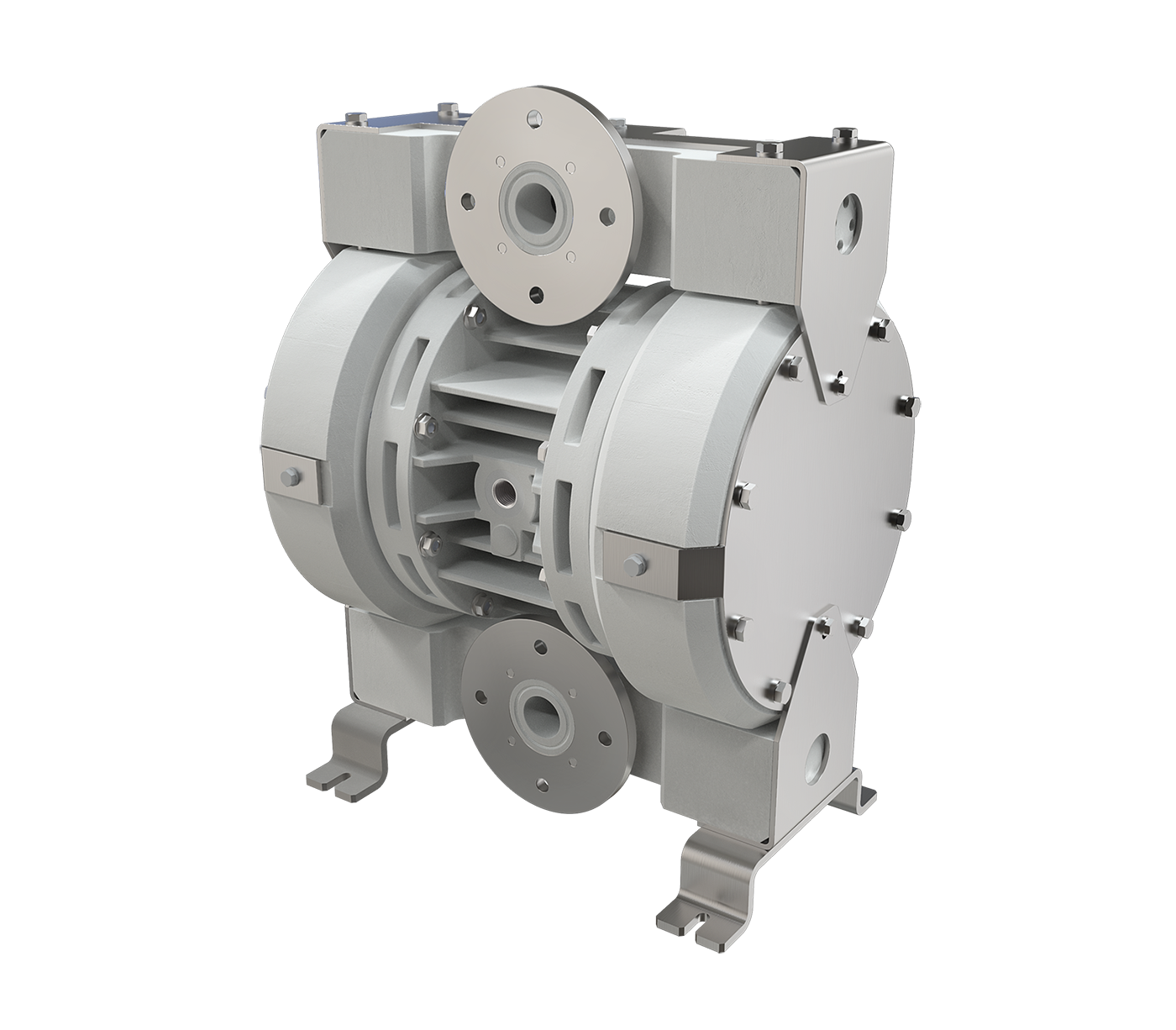

FPC 100

MAX FLOW RATE 130 L/MIN
CONNECTIONS 1“ flanged ANSI

ENTER
029---BOXER-100_PP

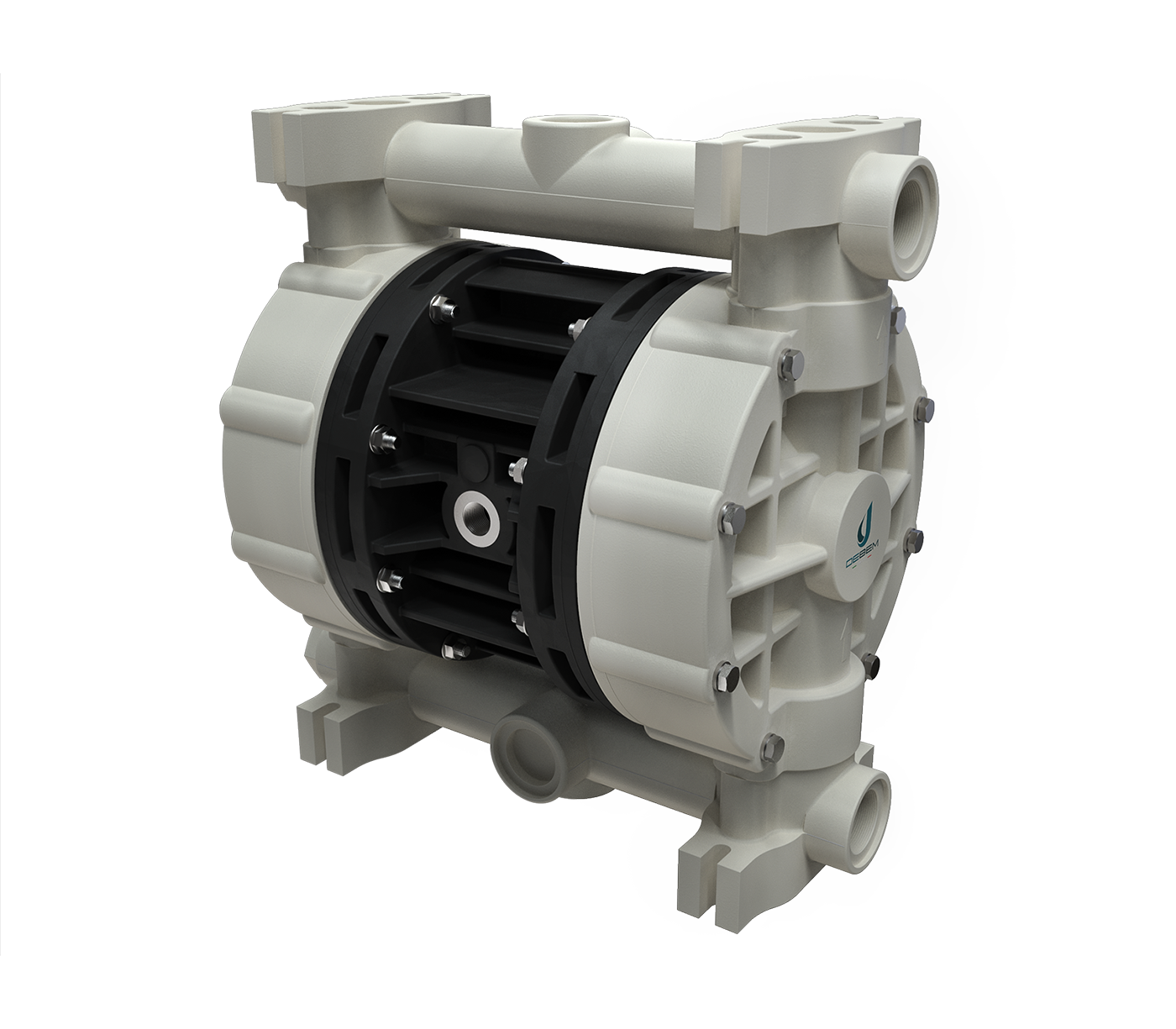

BOXER 100

MAX FLOW RATE 160 L/MIN
CONNECTIONS G 1“F

ENTER
boxer150

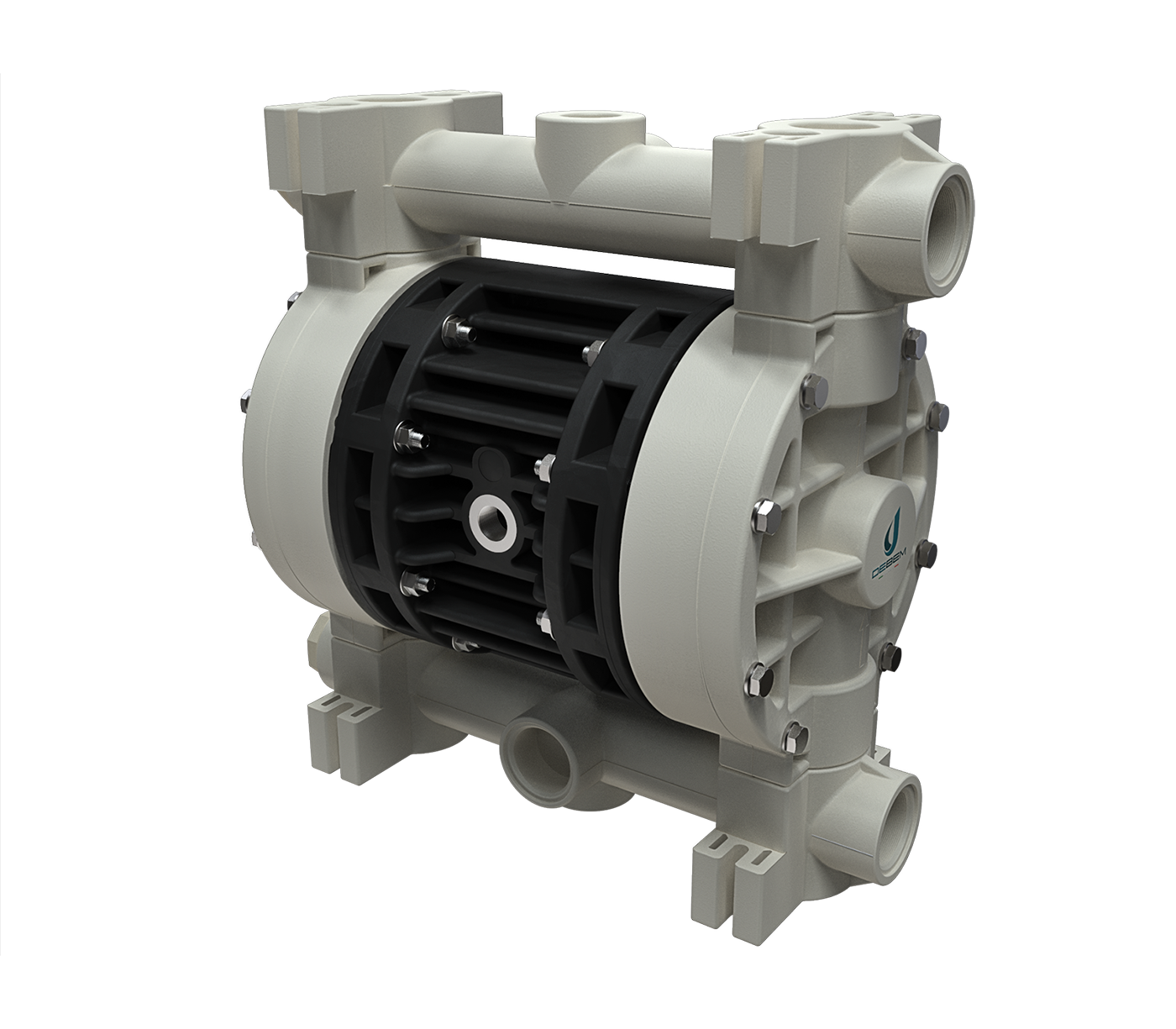

BOXER 150

MAX FLOW RATE 220 L/MIN
CONNECTIONS G 1“1/4 F

ENTER

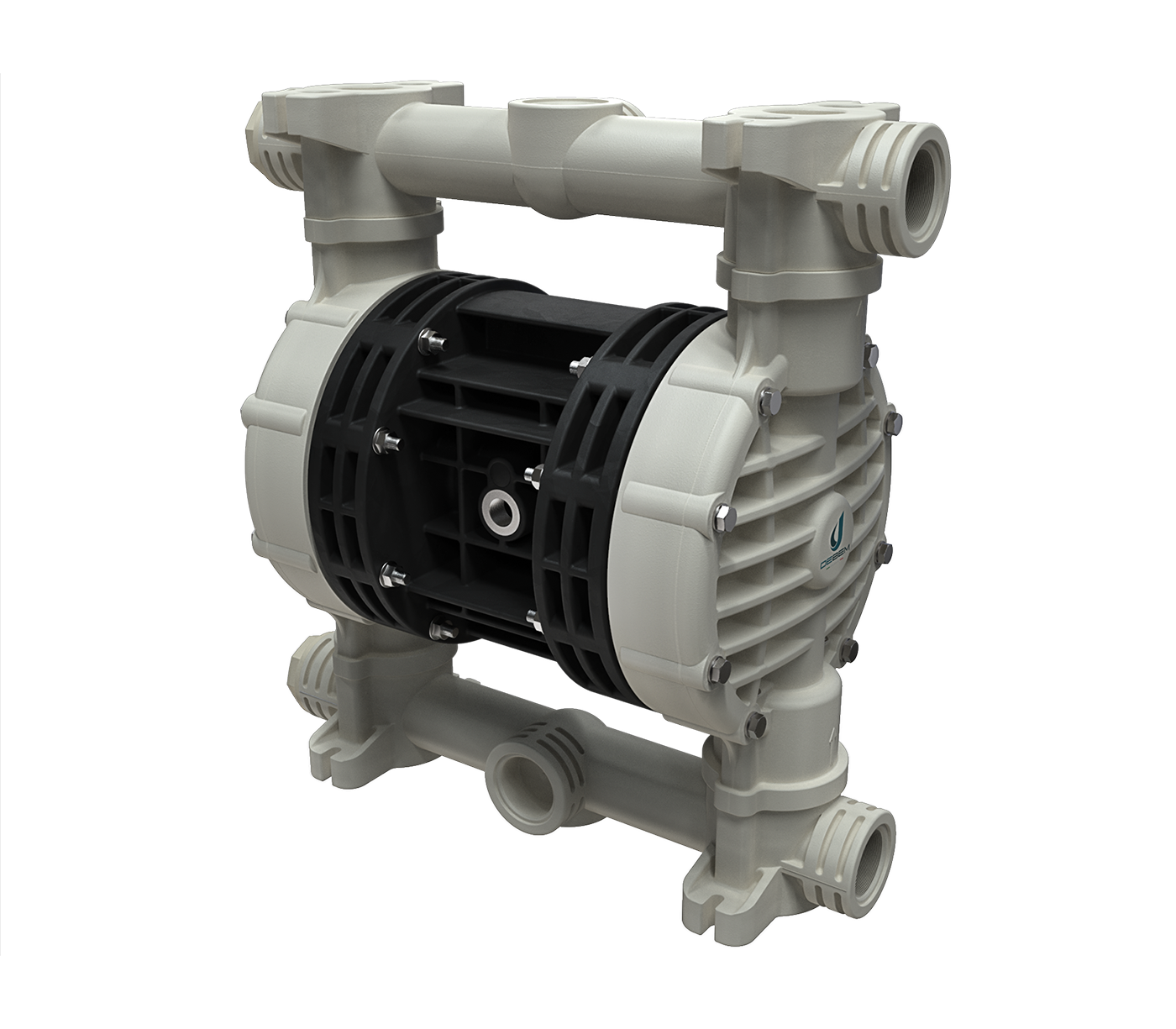

BOXER 251

MAX FLOW RATE 340 L/MIN
CONNECTIONS G 1“1/2 F

ENTER
BOXER-252_AISI_aprile
BOXER 252

MAX FLOW RATE 340 L/MIN
CONNECTIONS G 1“1/2 F

ENTER
041---BOXER-522_modifica-18-10

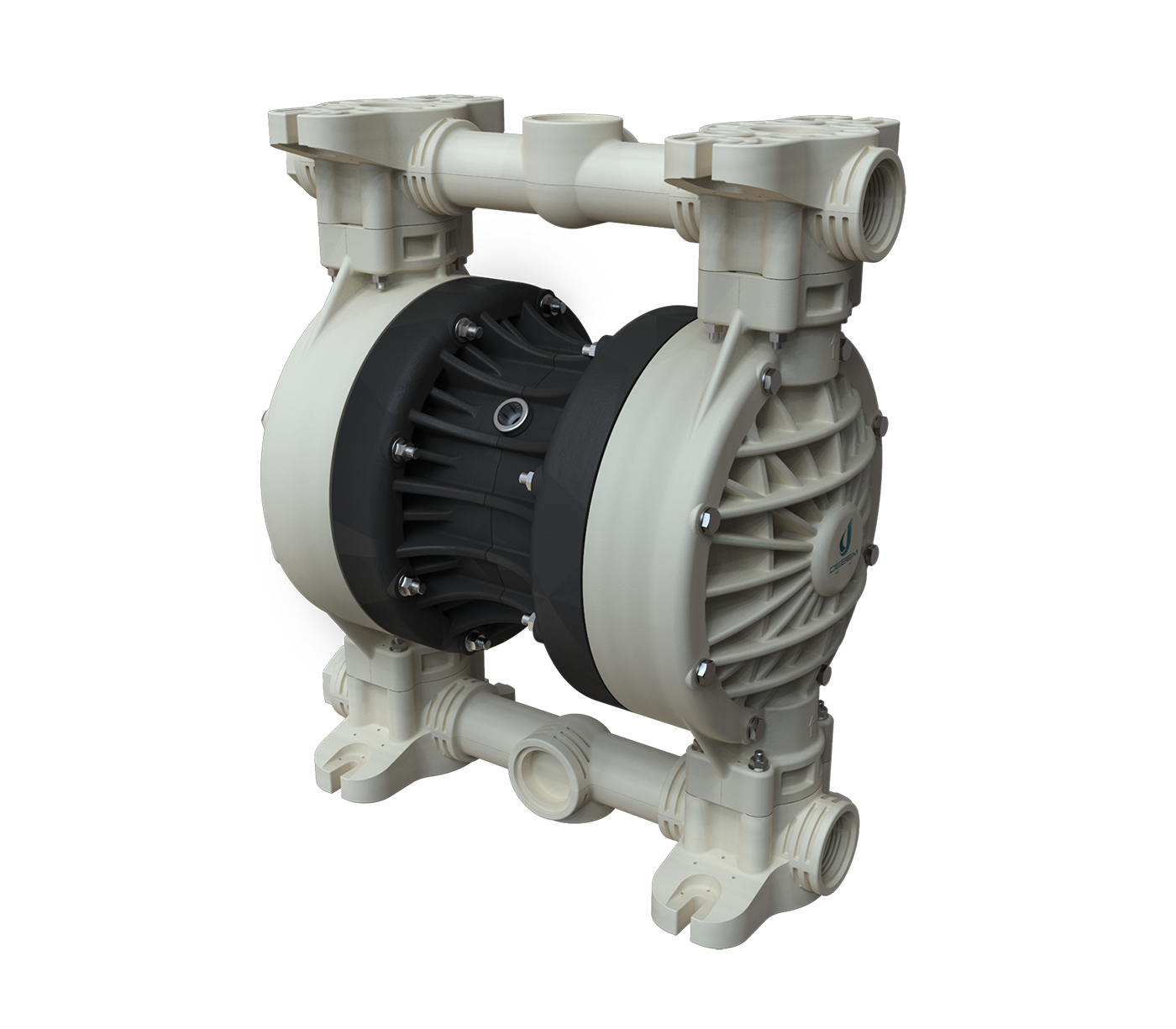

BOXER 522

MAX FLOW RATE 600 L/MIN
CONNECTIONS G 2“F

ENTER
043---BOXER-502-ALU

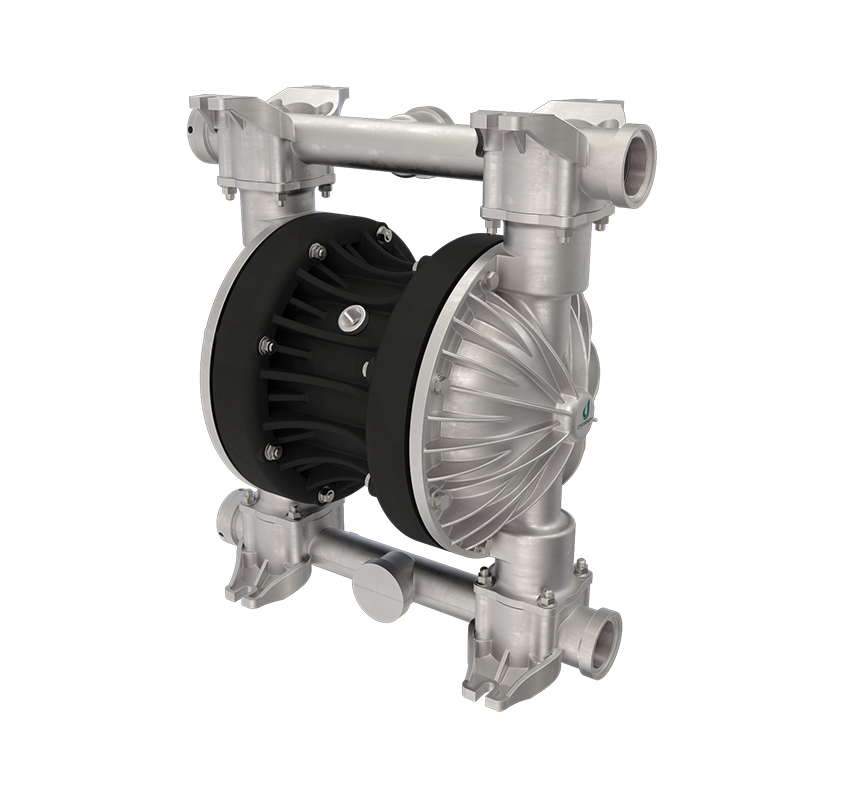

BOXER 502

MAX FLOW RATE 600 L/MIN
CONNECTIONS G 2“F

ENTER
045---BOXER-503_PP
BOXER 503

MAX FLOW RATE 800 L/MIN
CONNECTIONS G 3“F

ENTER
Accessories

Compatible accessories

Contacts

Ask for more information



    013---MICROBOXER_PP
    021-BOXER-50_PP-1
    025---BOXER-81_PP
    028---BOXER-90-ALU
    029---BOXER-100_PP
    033---BOXER-150_PP
    037---BOXER-251_PP
    041---BOXER-522_modifica-18-10
    043---BOXER-502-ALU
    045---BOXER-503_PP
    BOXER-7_PP_01-04
    BOXER-15_PP_2021
    FPC100_PTFE
    MINIBOXER_AISI
    Technical features

    Boxer pump features

    • Product designed and constructed in Italy
    • PATENTED stall-prevention pneumatic circuit
    • Operates with non-lubricated air
    • Self-priming
    • Dry operation
    • ATEX certification for ZONE 1 – ZONE 2
    • IECEx certification
    • Adjustable operating speed
    • Extremely versatile
    • Suitable for pumping liquids with high viscosity and demanding applications
    • Possibility of pumping fluids containing suspended solids
    • Possibility of suspended installation
    • Manifolds can be supplied with stainless steel reinforcement rings for pumps in PP – PP+CF – PVDF
    • Nozzles available with clamp connections and DIN 11851 (only pumps in AISI 316)
    • LONG LIFE profile diaphragms (available in different elastomers) for greater resistance and longer life
    • Suitable for continuous use
