Electric centrifugal pumps

MB 80

APPLICATIONS

Application sectors

AUTOMOTIVE

WATER TREATMENT INDUSTRY

CHEMICAL INDUSTRY

GALVANIC AND ELECTRONIC INDUSTRY

DATA

* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials

** Attention: average values of the different materials configurations for ball and ball seat.

DATA

Suction connections	G 1″1/2 f o DN 40
Delivery connections	G 1″ m o DN 25
Max flow rate *	6 m3/h
Max head *	7,5 m
Viscosity	up to 500 cps
Standard open impeller	Ø 85 mm H 9 mm (special versions are available on request for the fluid pumped)
Passing solids	Ø max 5 mm

Construction materials (casing and manifolds), net weight and temperature

Standard electric motors

Kw 0,37 – HP 0,5
Box B3+B14
RPM 2900
Aluminium / cast iron motor (the motor weight may vary, contact the sales office)
THREEPHASE 230/400 V – 50/60 Hz – 2 pole – Efficiency class IE1 – Protection rating IP55 – Ambient temperature -30°C + 45°C

Available in the following materials

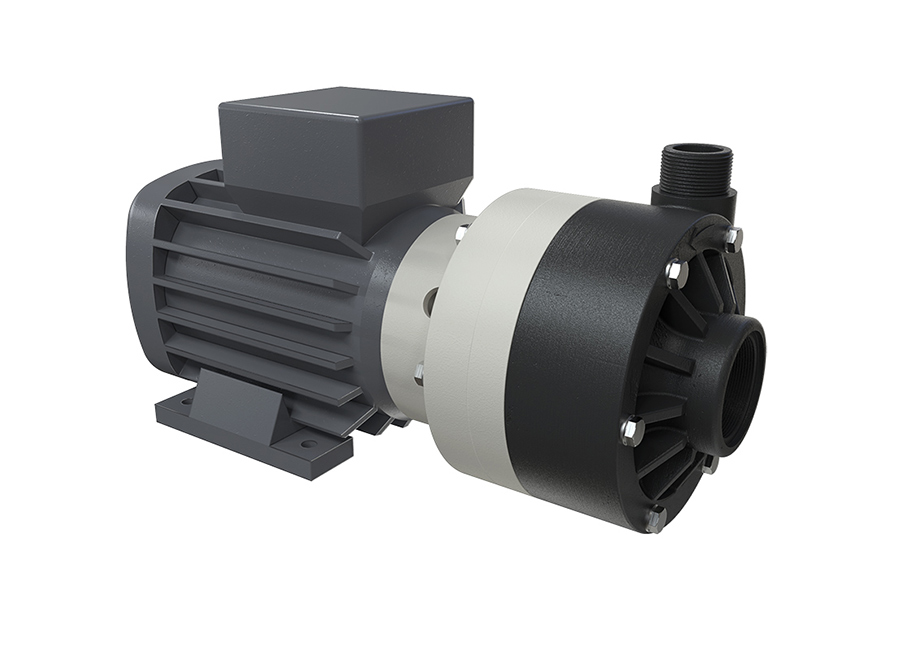

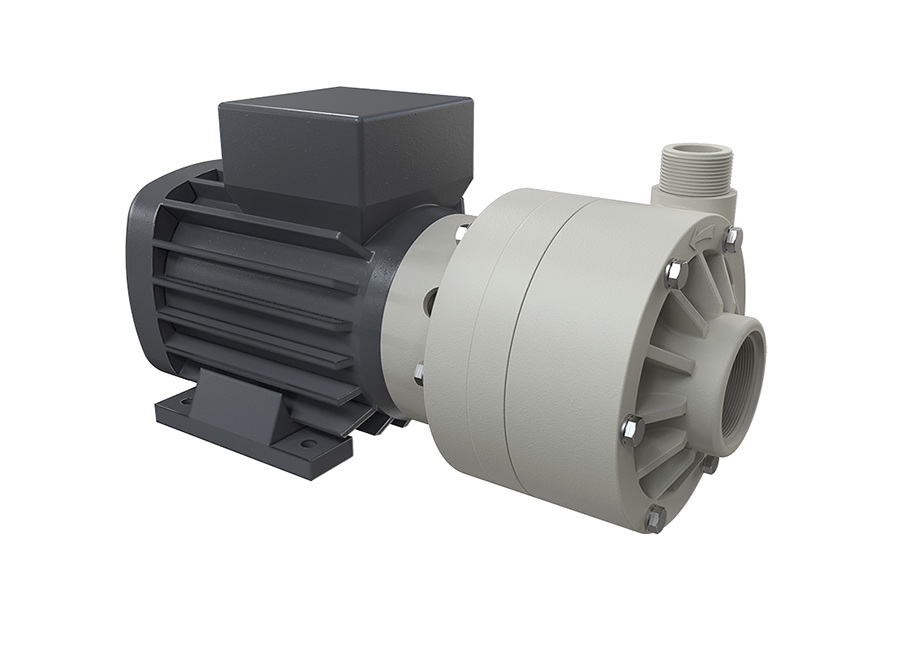

PP PVDF

Electric motors available on request

– SINGLEPHASE
– ATEX

Seal o-ring materials

– EPDM
– VITON®

Package

Protective case in polyurethane foam contained in a wooden case – 50 x 25 x 35 cm – weight 7 kg

The weight refers only to the packaging without the pump inside

Accessories

FLANGE KIT (DIN standard – ANSI on request):
– KITFLANGMB080P (PP pump)
– KITFLANGMB080F (PVDF pump)
PP or PVDF basket strainers

Aviable Seal

Bellows mechanical seal (new generation with “Self-locking” system)
Spring Aisi 304 – Sealing ring in SILICON CARBIDE + CERAMIC / SILICON CARBIDE + SILICON CARBIDE
Lip seal: VITON or EPDM
