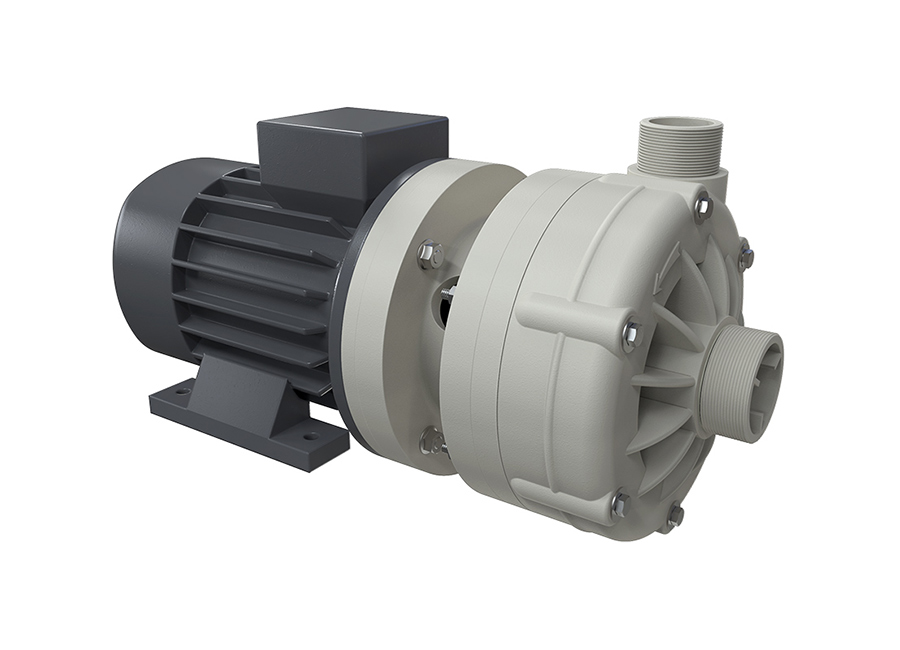

MB_130_PP

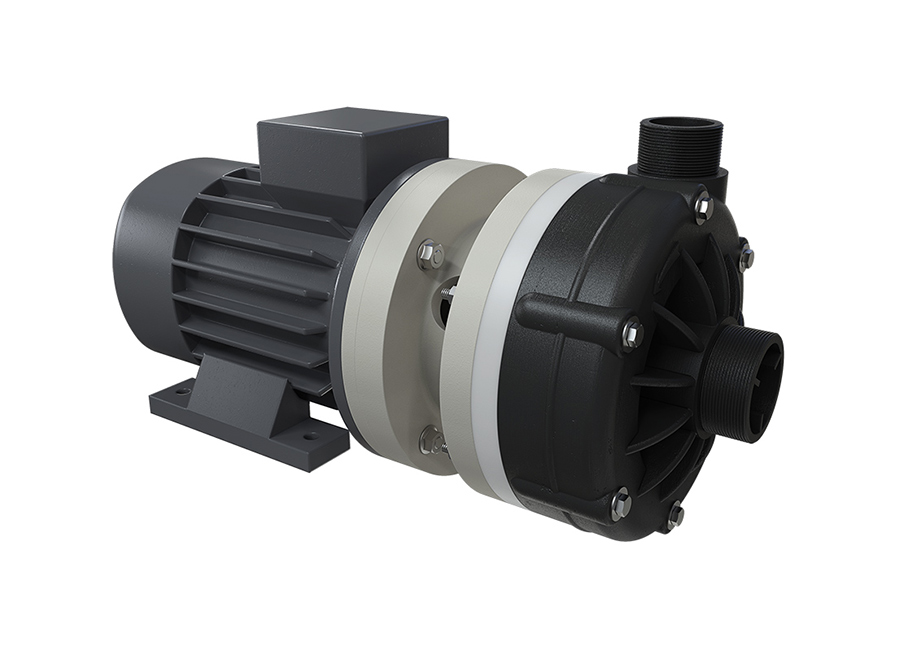

MB_130_PVDF
Electric centrifugal pumps

MB 130

  • Max flow rate: 30 m3/h
  • Suction connections: G 2″ m o DN 50
  • Delivery connections: G 1″1/2 m o DN 40
APPLICATIONS

Application sectors

Automotive
AUTOMOTIVE
DEPURAZIONE ACQUA E FANGHI
WATER TREATMENT INDUSTRY
INDUSTRIA CHIMICA
CHEMICAL INDUSTRY
INDUSTRIA GALVANICA E ELETTRONICA
GALVANIC AND ELECTRONIC INDUSTRY
DATA

Performance

Curva-Prestazioni-MB130
Curva-Rendimento-MB130
Curva-Potenza-MB130

* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials.

** Attention: average values of the different materials configurations for ball and ball seat.

DATA

Technical Specifications

Technical Specifications
Suction connections G 2″ m o DN 50
Delivery connections G 1″ 1/2 m o DN 40
Max flow rate * 30 m3/h
Head flow rate * 20 m
Viscosity up to 500 cps
Standard open impeller Ø 130 mm H 8 mm (special versions are available on request for the fluid pumped)
Passing solids Ø max 6 mm
Construction materials (casing and manifolds), net weight and temperature
Version Weight Min Max
PP (with glass additive) 3,8 kg 0° C 70° C
PVDF (with carbon additive) 4,9 kg -10° C 100° C
Standard electric motors
  • Kw 2,2 – HP 3
  • Box B3+B5
  • RPM  2900
  • Aluminium / cast iron motor (the motor weight may vary, contact the sales office)
  • THREEPHASE 230/400 V – 50/60 Hz – 2 pole – Efficiency class IE3 – Protection rating IP55 – Ambient temperature -30°C + 45°C
Available in the following materials

PP PVDF

Electric motors availabe on request

– SINGLEPHASE
– ATEX

Seal o-ring materials

– EPDM
– VITON®

Package
  • Protective case in polyurethane foam contained in a wooden case – cm 61 x 28 x 42 – weight 10 kg

The weight refers only to the packaging without the pump inside it

Accessories
  • FLANGE KIT (DIN standard – ANSI available on request):
    – KITFLANGMB110P (PP pump)
    – KITFLANGMB110F (PVDF pump)
  • Basket filter in PP or PVDF
Aviable Seal
  • Bellows mechanical seal (new generation with “Self-locking” system)
    Spring Aisi 304 – Sealing ring in SILICON CARBIDE + CERAMIC / SILICON CARBIDE + SILICON CARBIDE
  • Lip seal: VITON or EPDM
