Air-operated double diaphragm pumps
Midgetbox
- Maximum flow rate: 6 l/min
- Suction / delivery connections: G 1/4″ f
![Atex](https://www.debem.com/wp-content/uploads/2022/10/LoghiCertificazioni1.png)
ATEX ZONE 2 - STANDARD ON ALL MODELS
II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc
ATEX ZONE 1 - AVAILABLE ON REQUEST
II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db
![DEPURAZIONE ACQUA E FANGHI](https://www.debem.com/wp-content/uploads/2022/03/DepurazioneAcqueFanghi.png)
WATER TREATMENT INDUSTRY
![INDUSTRIA GRAFICA](https://www.debem.com/wp-content/uploads/2022/03/IndustriaGrafica.png)
GRAPHIC INDUSTRY
![INDUSTRIA CHIMICA](https://www.debem.com/wp-content/uploads/2022/03/IndustriaChimica.png)
CHEMICAL INDUSTRY
![INDUSTRIA GALVANICA E ELETTRONICA](https://www.debem.com/wp-content/uploads/2022/03/IndustriaGalvanica.png)
GALVANIC AND ELECTRONIC INDUSTRY
Data

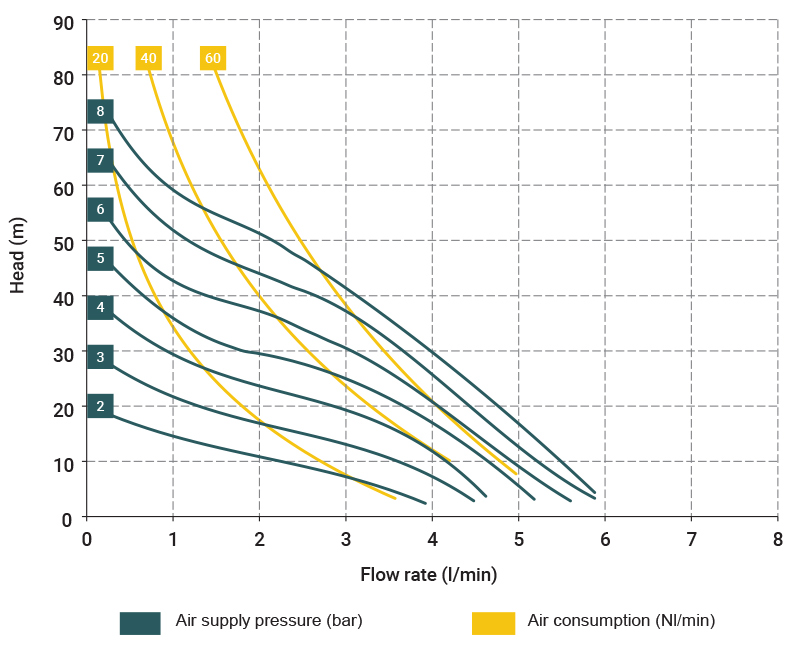

Performance
![](https://www.debem.com/wp-content/uploads/2022/03/Midget_Prestazioni.jpg)
* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials
** Attention: average values of the different materials configurations for ball and ball seat.
Data
Technical Specifications
Head / Flow rate guaranteed in compliance with ISO 9906
Suction/delivery connections | G 1/4″ f |
Air fitting | G 1/8″ f |
Max flow rate * | 6 l/min |
Max supply air pressure | 8 bar |
Max head * | 80 m |
Max negative suction head – dry-running ** | 3 m |
Max negative suction head – pump primed | 9,5 m |
Diameter Max suspended solids | 0 mm |
Noise level ** | 60 dB |
Volume per stroke | 3,2 cc |
PP
Version | Weight | Min | Max |
PP (with glass additive) | 0,52 kg | 3° C | 65° C |
PP conductive (with carbon additive) | 0,52 kg | 3° C | 65° C |
Maximum Dimensions | Plastic |
Height | 75 mm |
Width | 121 mm |
Depth | 60 mm |
