PULSATION DAMPERS

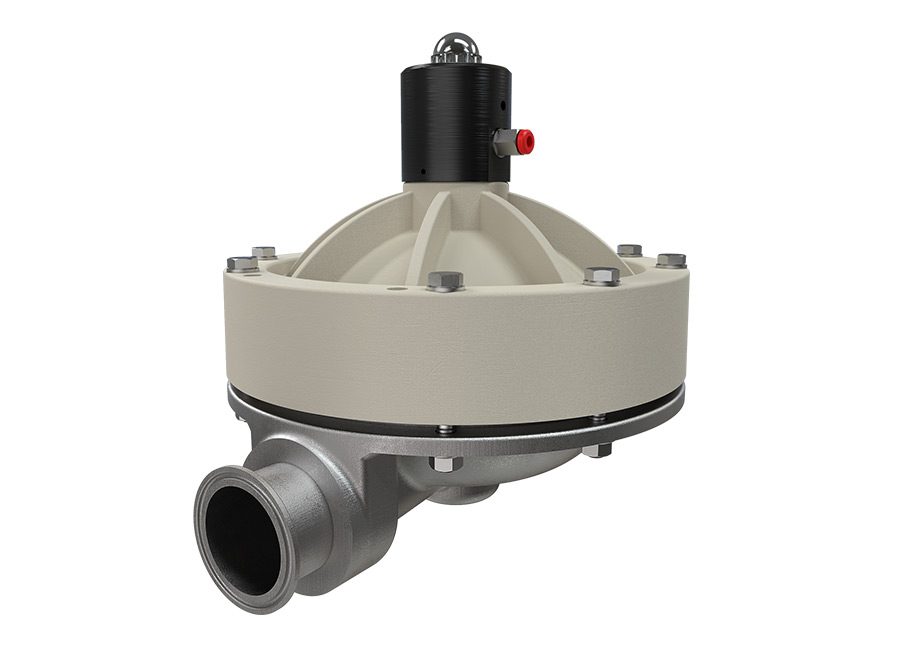

FDA Equaflux 200
- Product fittings:
1"1/2 CLAMP (DN 38) - BS - British Standard 4825
1"1/4 CLAMP (ISO 2852)
2" CLAMP (DN 50) - BS - British Standard 4825
ATEX ZONE 2 - STANDARD ON ALL MODELS
II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc
ATEX ZONE 1 - AVAILABLE ON REQUEST
II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db
| Product fitting | 1″1/2 CLAMP (DN 38) – BS – British Standard 4825
1″1/4 CLAMP (ISO 2852)
2″ CLAMP (DN 50) – BS – British Standard 4825 |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Boxer 100, Boxer 150, Boxer 251 |
| Weight | 7,45 kg |
| Operating temperature | from +3°C to +95°C |
| Dimension (mm) | 256,7 x 254 |
– PP
– Hytrel
– PTFE
