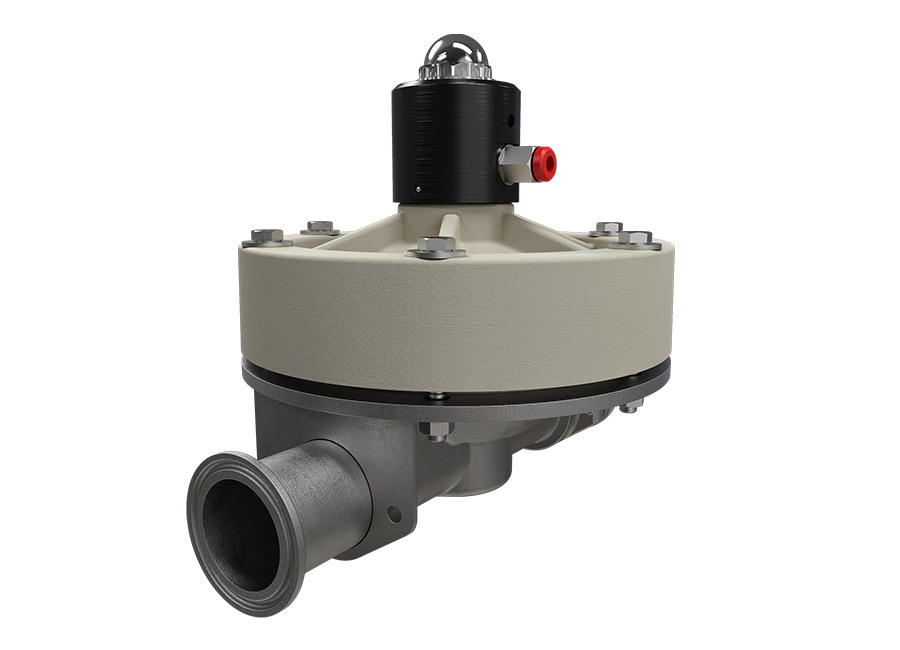

PULSATION DAMPERS
FDA Equaflux 100
- Product fittings:
3/4" CLAMP (DN 19) - BS - British Standard 4825
1" CLAMP (DN 25) - BS - British Standard 4825
1"1/2 CLAMP (DN 38) - BS - British Standard 4825
ATEX ZONE 2 - STANDARD ON ALL MODELS
II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc
ATEX ZONE 1 - AVAILABLE ON REQUEST
II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db
| Product fitting | 3/4″ CLAMP (DN 19) – BS – British Standard 4825 1″ CLAMP (DN 25) – BS – British Standard 4825 1″1/2 CLAMP (DN 38) – BS – British Standard 4825 |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Miniboxer, Boxer 81 |
| Weight | 2,56 kg |
| Operating temperature | from +3°C to +95°C |
| Dimension (mm) | 183,2 x 151 |
– PP
– Hytrel
– PTFE
