ATEX ZONE 2 - STANDARD ON ALL MODELS
II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc
ATEX ZONE 1 - AVAILABLE ON REQUEST
II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db

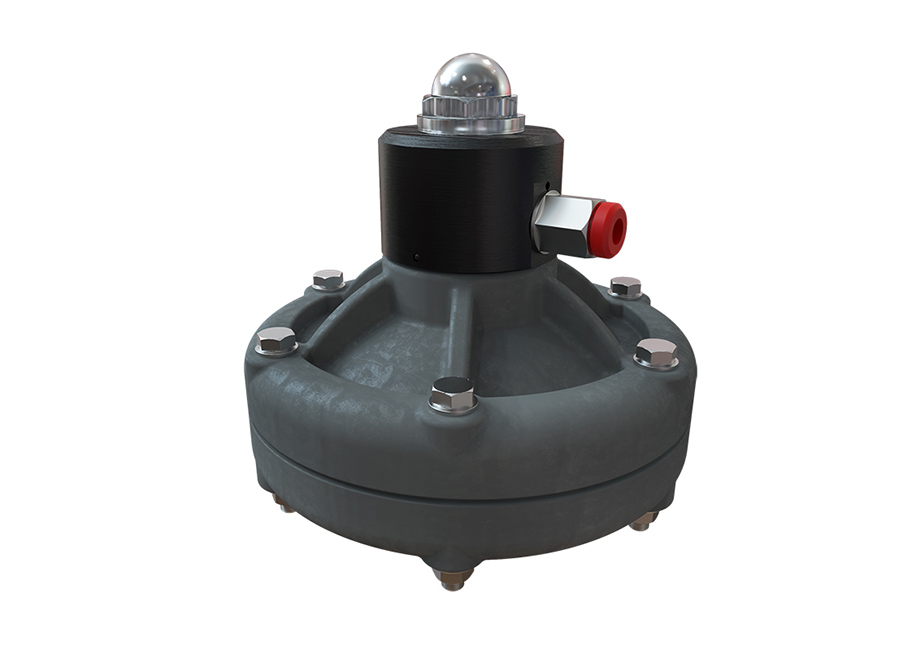

Material (half-casing in contact with the fluid): PP
| Product fitting | G 3/4″ f |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Midgetbox, Cubic 15, Boxer 7, Boxer 15, Microboxer |
| Weight | 0,5 kg |
| Operating temperature | from +3°C to +65°C |
| Dimension (mm) | 121 x 117 |
Material (half-casing in contact with the fluid): PP + CF
| Product fitting | G 3/4″ f |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Midgetbox, Cubic 15, Boxer 7, Boxer 15, Microboxer |
| Weight | 0,5 kg |
| Operating temperature | from +3°C to +65°C |
| Dimension (mm) | 121 x 117 |

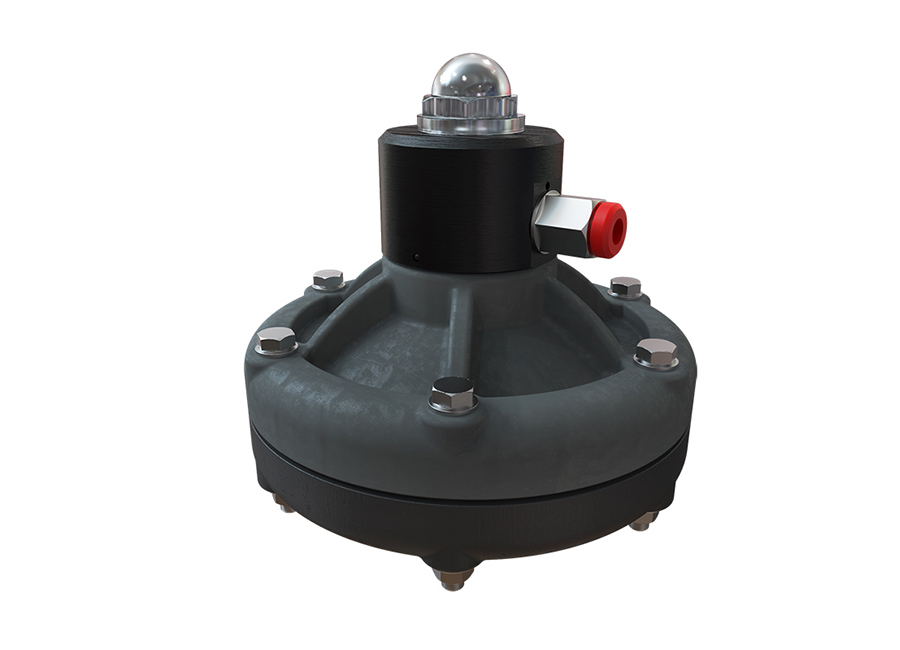

Material (half-casing in contact with the fluid): PVDF
| Product fitting | G 3/4″ f |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Cubic 15, Boxer 7, Boxer 15, Microboxer |
| Weight | 0,5 kg |
| Operating temperature | from +3°C to +95°C |
| Dimension (mm) | 121 x 117 |

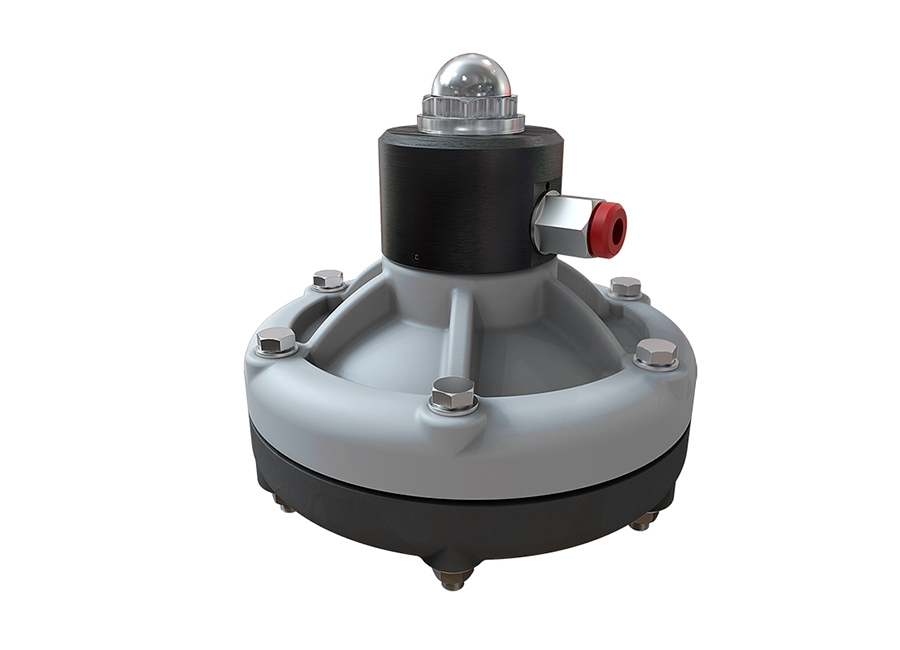

Material (half-casing in contact with the fluid): PPS – V
| Product fitting | G 3/4″ f |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Boxer 7, Boxer 15, Microboxer |
| Weight | 0,6 kg |
| Operating temperature | from +3°C to +95°C |
| Dimension (mm) | 121 x 117 |

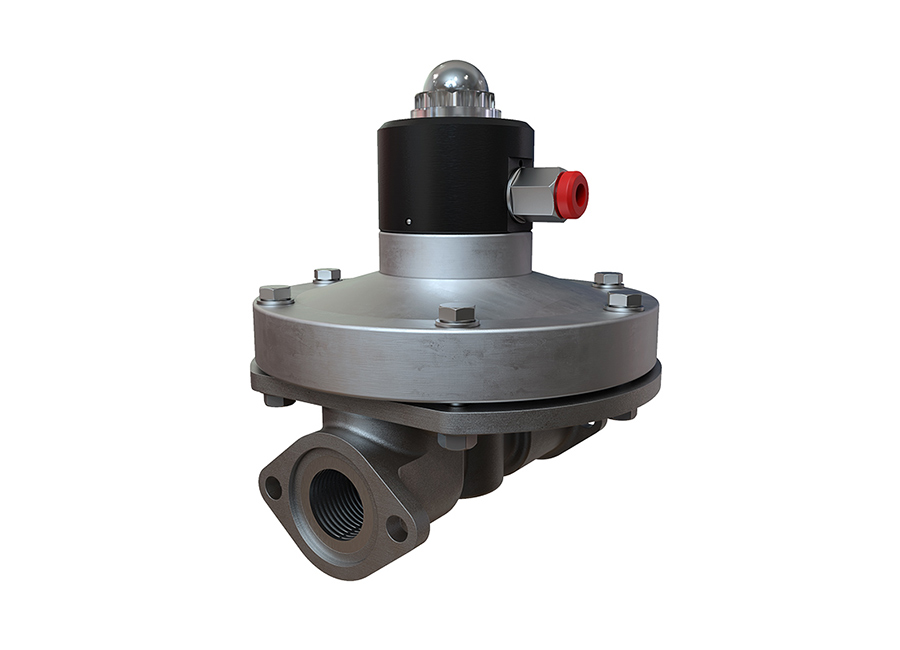

PP PP+CF PVDF PPS-V AISI 316 L
| Product fitting | G 1/2″ f |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Boxer 7, Boxer 15, Microboxer |
| Weight | 1,33 kg |
| Operating temperature | from +3°C to +95°C |
| Dimension (mm) | 133 x 117 |
– PP
– PP+CF
– ALUMINUM
– NBR
– EPDM
– Hytrel
– Santoprene
– PTFE
– PP (with glass additive)
– PP conductive (with carbon additive)
– PVDF
– PPS-V
– ECTFE natural
– AISI 316
– Aluminium
