ATEX ZONE 2 - STANDARD ON ALL MODELS
II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc
ATEX ZONE 1 - AVAILABLE ON REQUEST
II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db
Material (half-casing in contact with the fluid): PP
| Product fitting | G 1″1/2 f |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Boxer 100, Boxer 150, Boxer 251 |
| Weight | 3,8 kg |
| Operating temperature | from +3°C to +65°C |
| Dimension (mm) | 283,2 x 254 |
Material (half-casing in contact with the fluid): PP + CF
| Product fitting | G 1″1/2 f |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Boxer 100, Boxer 150, Boxer 251 |
| Weight | 3,8 kg |
| Operating temperature | from +3°C to +65°C |
| Dimension (mm) | 283,3 x 254 |

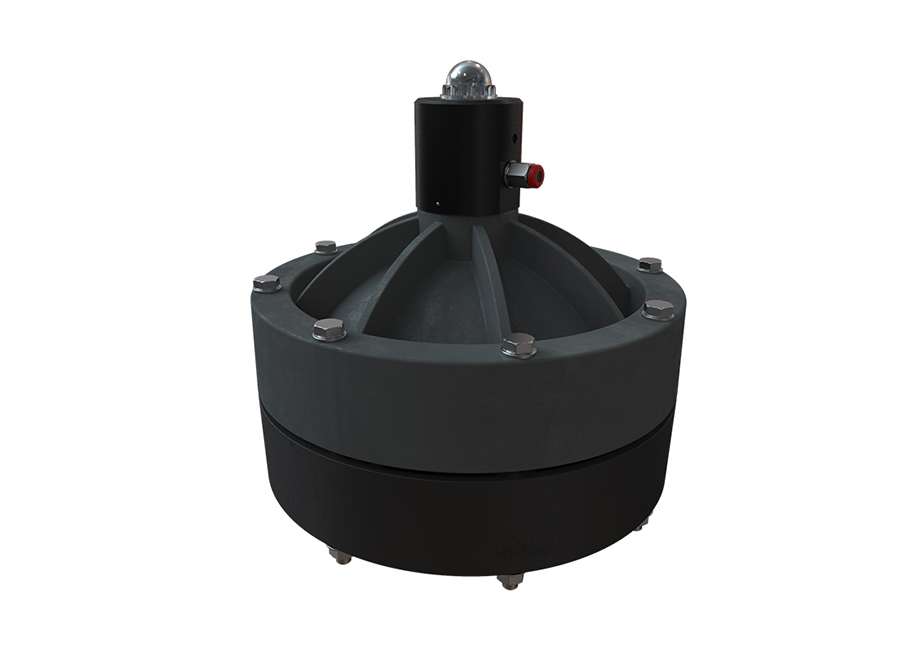

Material (half-casing in contact with the fluid): PVDF
| Product fitting | G 1″1/2 f |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Boxer 100, Boxer 150, Boxer 251 |
| Weight | 4,5 kg |
| Operating temperature | from +3°C to +95°C |
| Dimension (mm) | 283,3 x 254 |

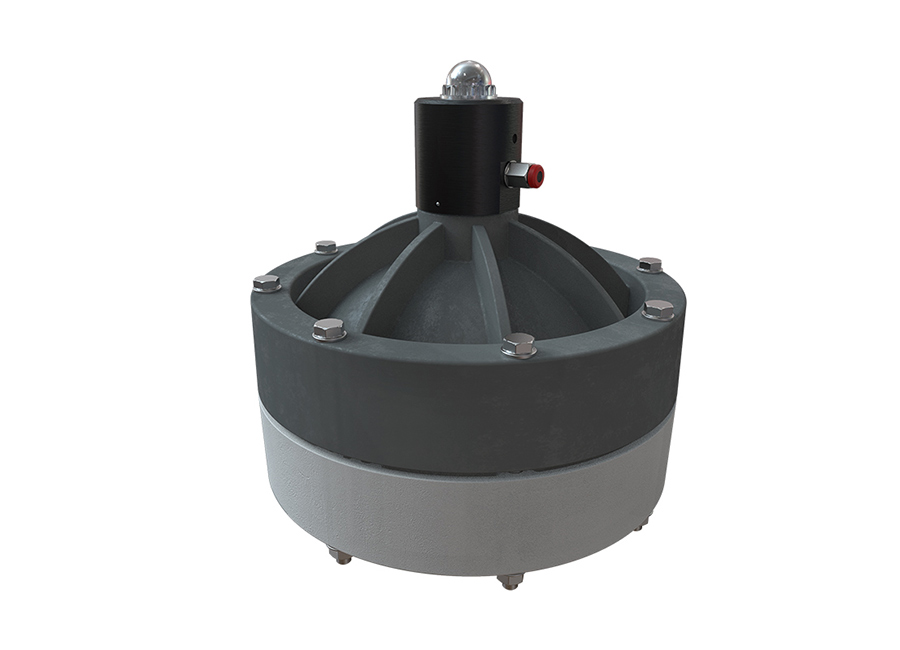

Material (half-casing in contact with the fluid): PPS – V
| Product fitting | G 1″1/2 f |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Boxer 100, Boxer 150, Boxer 251 |
| Weight | 4,5 kg |
| Operating temperature | from +3°C to +95°C |
| Dimension (mm) | 283,2 x 254 |

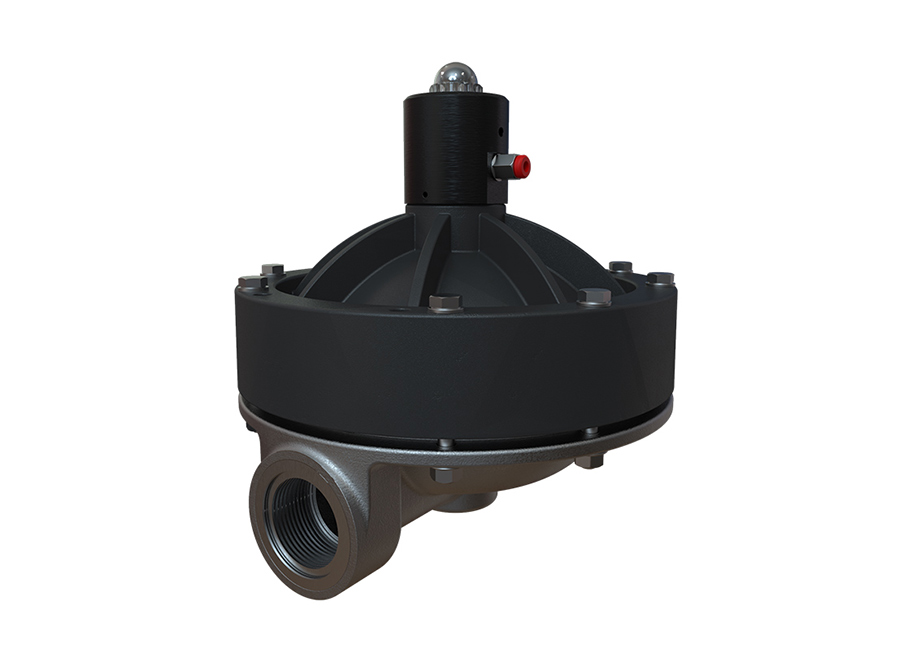

PP PP+CF PVDF PPS-V AISI 316
| Product fitting | G 1″1/2 f |
| Air fitting | Ø 6 mm |
| Operating pressure | Min 2 Bar – Max 8 Bar |
| Application | Boxer 100, Boxer 150, Boxer 251 |
| Weight | 7,45 kg |
| Operating temperature | from +3°C to +95°C |
| Dimension (mm) | 256,7 x 254 |
– PP
– PP+CF
– NBR
– EPDM
– Hytrel
– Santoprene
– PTFE
– PP (with glass additive)
– PP conductive (with carbon additive)
– PVDF
– ECTFE natural
– AISI 316
– Aluminium
