Air-operated double diaphragm pumps

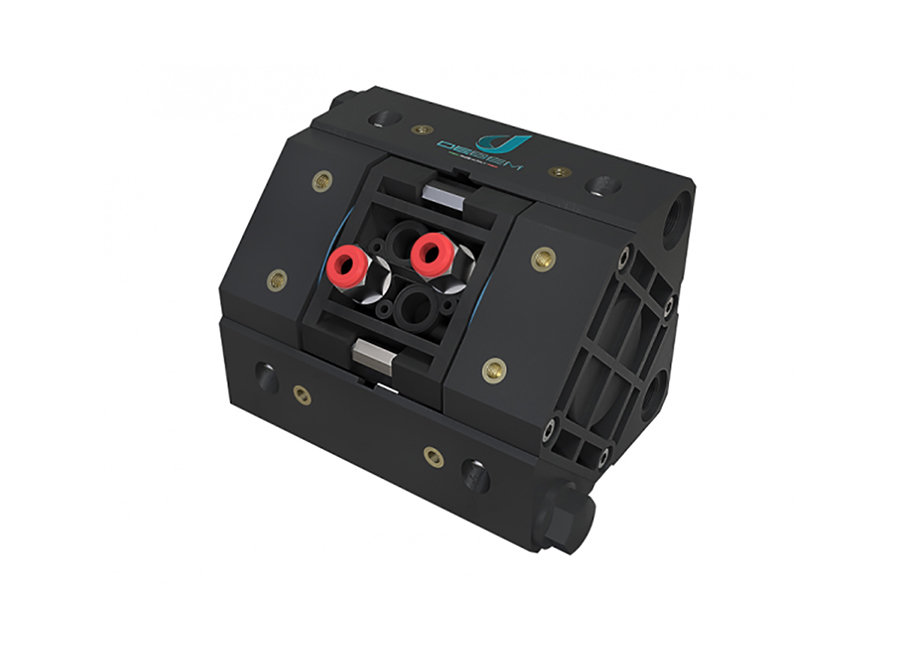

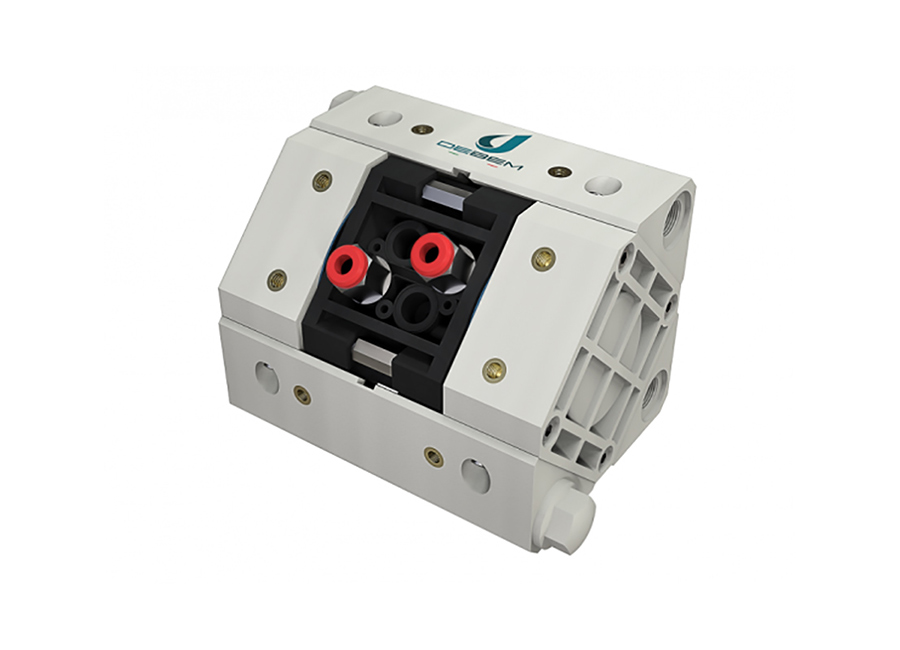

Scubic
- Maximum flow rate: 17 l/min
- Suction / delivery connections: G 3/8″ f
ATEX ZONE 2 - STANDARD ON ALL MODELS
II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc
ATEX ZONE 1 - AVAILABLE ON REQUEST
II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db
CHEMICAL INDUSTRY
GRAPHIC INDUSTRY
DATA
Technical Specification
Head / Flow rate guaranteed in compliance with ISO 9906
| Suction/delivery connections | G 3/8″ f |
| Air fitting | G 3/8″ f |
| Max flow rate * | 17 l/min |
| Max supply air pressure | 8 bar |
| Max negative suction head – dry-running ** | 3 m |
| Max negative suction head – pump primed | 9,5 m |
| Diameter max suspended solids | 0,5 mm |
| Noise level ** | 65 dB |
| Volume stroke | 10,3 cc |
Construction materials (casing and manifolds) available on request
– POMc
– UHMWPE
PP ECTFE
| Version | Weight | Min | Max |
| PP (with glass additive) | 1,35 kg | 3° C | 65° C |
| PP conductive (with carbo additive) | 1,35 kg | 3° C | 65° C |
| ECTFE | 1,6 kg | 3° C | 95° C |
| Maximum dimensions | Plastic |
| Height | 105 mm |
| Width | 201 mm |
| Depth | 105 mm |
